CST023NK - TE Connectivity

Description: CST023NK=REPLACEMENT FOR CST02 ROHS COMPLIANT: YES Slide Switches

Download CST023NK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

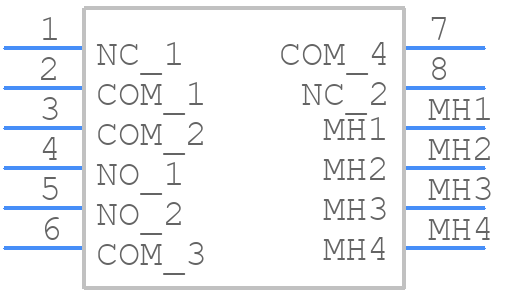

Symbol
CST023NK - TE Connectivity - PCB symbol
click to zoom

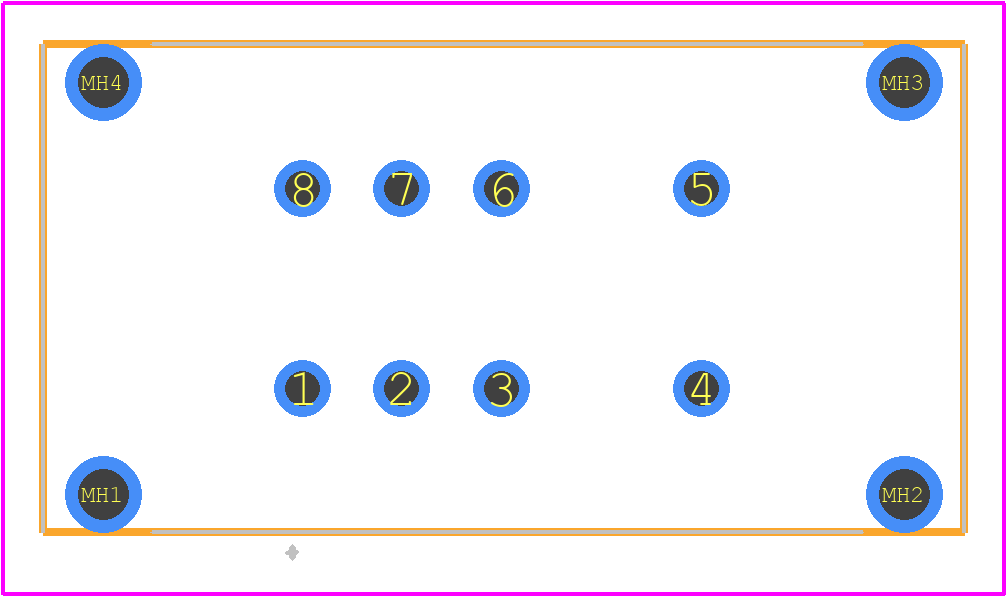

PCB Footprints
CST023NK - TE Connectivity PCB footprint - Other - Other - CST023NK-1
click to zoom
3D Models
CST023NK - TE Connectivity - 3D model - Other - CST023NK-1
click to zoom

CST023NK Details

  • Manufacturer Part Number:

    CST023NK

  • Brand Name:

    Alcoswitch

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    TE Connectivity

  • Actuator Type:

    LEVER

  • Body Breadth:

    12.2 mm

  • Body Height:

    12 mm

  • Body Length or Diameter:

    23 mm

  • Contact (AC) Max Rating R Load:

    .3A@125VAC

  • Contact Current(AC)-Max:

    0.3 A

  • Contact Current(DC)-Max:

    0.2 A

  • Contact (DC) Max Rating R Load:

    .2A@12VDC

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    12 V

  • Electrical Life:

    10000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operating Force-Max:

    6.86 N

  • Operating Temperature-Max:

    55 °C

  • Operating Temperature-Min:

    -15 °C

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    DP3T

  • Switch Type:

    TOGGLE SWITCH

  • Termination Type:

    SOLDER

CST023NK Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of CST023NK is 0.5 Nm to 1.5 Nm, as specified in the TE Connectivity application notes.
  • Yes, CST023NK is designed to withstand high-vibration environments. It has a ruggedized design and meets the vibration requirements of IEC 61373 Category 1, Class B.
  • Yes, CST023NK is compatible with lead-free soldering processes. It has a lead-free finish and is designed to meet the requirements of RoHS and WEEE directives.
  • The maximum operating temperature range for CST023NK is -40°C to 125°C, as specified in the datasheet. However, it's recommended to derate the current rating at higher temperatures to ensure reliable operation.
  • CST023NK has a moisture sensitivity level (MSL) of 3, which means it can withstand humid or wet environments. However, it's recommended to follow proper handling and storage procedures to prevent moisture ingress.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CST023NK Overview

Use the download button to access the CST023NK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CST02, or try a keyword search, such as Toggle Switches

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
