CST2-050LB - COILCRAFT

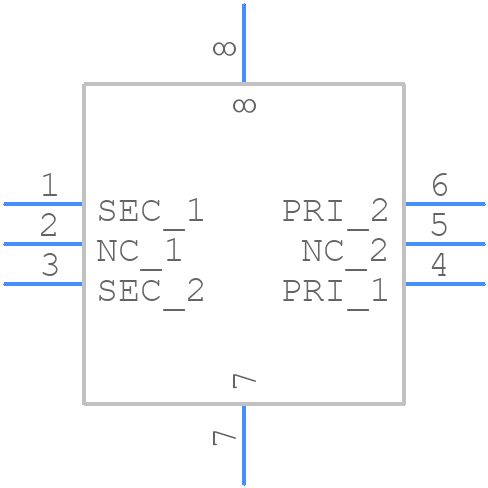

CST2-050LB Details

• Manufacturer Part Number:

  CST2-050LB

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• Manufacturer:

  Coilcraft Inc

• YTEOL:

  0

• Additional Feature:

  HEIGHT DIM INCLUDES TERMINAL ALSO

• Application:

  SIGNAL

• Approvals:

  AEC-Q200

• ET Product-Min:

  27 V-us

• Height:

  5.3 mm

• Isolation Voltage:

  500 V

• JESD-609 Code:

  e3

• Length:

  6.22 mm

• Load Resistance:

  2.5 Ω

• Mounting Feature:

  SURFACE MOUNT

• Number of Primary Winding:

  1

• Number of Secondary Winding:

  1

• Operating Frequency-Max:

  1000 kHz

• Operating Frequency-Min:

  19 kHz

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  TR

• Peak Primary Current:

  20 A

• Primary Inductance:

  500 µH

• Primary Type:

  WOUND PRIMARY

• Secondary Inductance:

  500 µH

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn) - with Nickel (Ni) barrier

• Transformer Type:

  CURRENT SENSE TRANSFORMER

• Turns Ratio (Np:Ns):

  1:50

• Width:

  5.97 mm
