CST2-100LB - COILCRAFT

Description: Current Transformers CST2 1:100 20A 2KuH AEC-Q200

Download CST2-100LB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

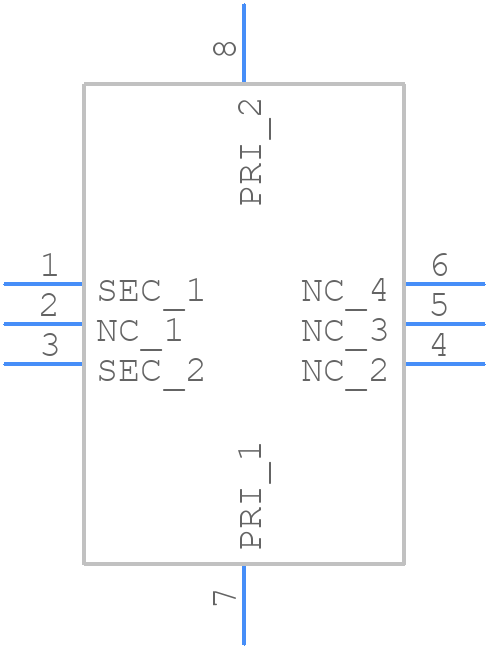

Symbol
CST2-100LB - COILCRAFT - PCB symbol
click to zoom
PCB Footprints
CST2-100LB - COILCRAFT PCB footprint - Other - Other - CST2-100LB-1
click to zoom
3D Models
CST2-100LB - COILCRAFT - 3D model - Other - CST2-100LB-1
click to zoom

CST2-100LB Details

  • Manufacturer Part Number:

    CST2-100LB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    0

  • Additional Feature:

    HEIGHT DIM INCLUDES TERMINAL ALSO

  • Application:

    SIGNAL

  • Approvals:

    AEC-Q200

  • ET Product-Min:

    54 V-us

  • Height:

    5.3 mm

  • Isolation Voltage:

    500 V

  • JESD-609 Code:

    e3

  • Length:

    6.22 mm

  • Load Resistance:

    5 Ω

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    1000 kHz

  • Operating Frequency-Min:

    9 kHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR

  • Peak Primary Current:

    20 A

  • Primary Inductance:

    2000 µH

  • Primary Type:

    WOUND PRIMARY

  • Secondary Inductance:

    2000 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Transformer Type:

    CURRENT SENSE TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:100

  • Width:

    5.97 mm

CST2-100LB Frequently Asked Questions (FAQs)

  • The recommended PCB land pattern for the CST2-100LB is a rectangular pad with a minimum size of 50 mils x 30 mils (1.27 mm x 0.76 mm) with a non-solder mask defined (NSMD) pad.
  • The CST2-100LB is rated for operation up to 125°C, but derating is required for temperatures above 85°C. Consult the datasheet for specific derating information.
  • Handle the CST2-100LB by the body, avoiding touching the leads or core. Use a wrist strap or anti-static mat to prevent electrostatic discharge (ESD) damage.
  • The SRF of the CST2-100LB is approximately 150 MHz, but this can vary depending on the specific application and PCB layout.
  • The CST2-100LB is rated for a maximum current of 1.4 A, but the actual current handling depends on the specific application and operating conditions. Consult the datasheet for thermal derating information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CST2-100LB Overview

Use the download button to access the CST2-100LB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CST2-, or try a keyword search, such as Current Sense Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
