CST2-100LC footprint, schematic symbol and 3D model by COILCRAFT

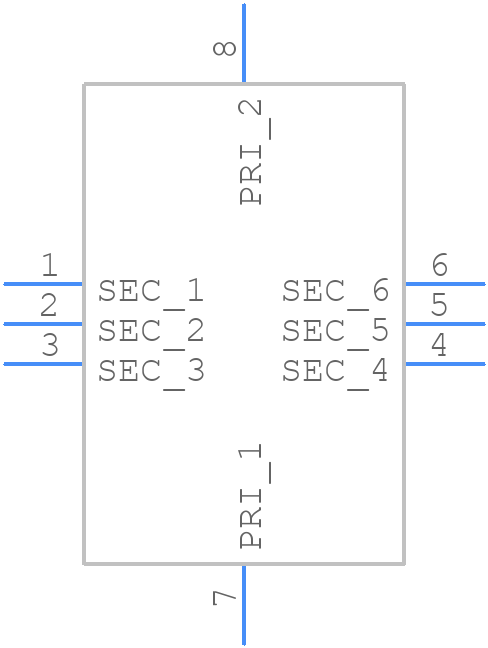

Symbol

click to zoom

PCB Footprints

CST2-100LC - COILCRAFT PCB footprint - Other - Other - CST2-100LC-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CST2-100LC
Part Number CST2-100LC
Manufacturer COILCRAFT
Pin Count 8
Part Category Transformer
Package Category Other
Footprint Name Other - CST2-100LC-1
Released Date Dec 27, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

CST2-100LC Details

Manufacturer Part Number:
CST2-100LC
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
8
Additional Feature:
HEIGHT DIM INCLUDES TERMINAL ALSO
Application:
SIGNAL
Approvals:
AEC-Q200
ET Product-Min:
54 V-us
Height:
5.3 mm
Isolation Voltage:
500 V
JESD-609 Code:
e3
Length:
6.22 mm
Load Resistance:
5 Ω
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
1
Number of Secondary Winding:
1
Operating Frequency-Max:
1000 kHz
Operating Frequency-Min:
9 kHz
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Packing Method:
TR, EMBOSSED PLASTIC, 7 INCH
Peak Primary Current:
20 A
Primary Inductance:
2000 µH
Primary Type:
WOUND PRIMARY
Secondary Inductance:
2000 µH
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - with Nickel (Ni) barrier
Transformer Type:
CURRENT SENSE TRANSFORMER
Turns Ratio (Np:Ns):
1:100
Width:
5.97 mm

CST2-100LC Frequently Asked Questions (FAQs)

The recommended PCB land pattern for the CST2-100LC is a rectangular pad with a minimum size of 50 mils x 30 mils (1.27 mm x 0.76 mm) with a non-solder mask defined (NSMD) pad.
To minimize the impact of PCB layout and proximity to other components, keep the CST2-100LC at least 10 mm away from other components, use a solid ground plane, and avoid routing high-frequency signals near the inductor.
The CST2-100LC has an operating temperature range of -40°C to +125°C, but derating is required above 85°C.
Use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the PCB pad. Ensure the inductor is properly aligned and seated on the pad before soldering.
Store the CST2-100LC in a dry, cool place, away from direct sunlight and moisture. Handle the components by the body, not the leads, and avoid bending or flexing the leads.

Trust Checks

Expert Contribution

System Verified

Community Approved

CST2-100LC Overview

Use the download button to access the CST2-100LC schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like CST2-, or try a keyword search, such as Current Sense Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
