CST2010-100LD - COILCRAFT

Description: Current Transformers 40A 8.5mH 2.5 Ohms AEC-Q200

Download CST2010-100LD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CST2010-100LD - COILCRAFT - PCB symbol
click to zoom

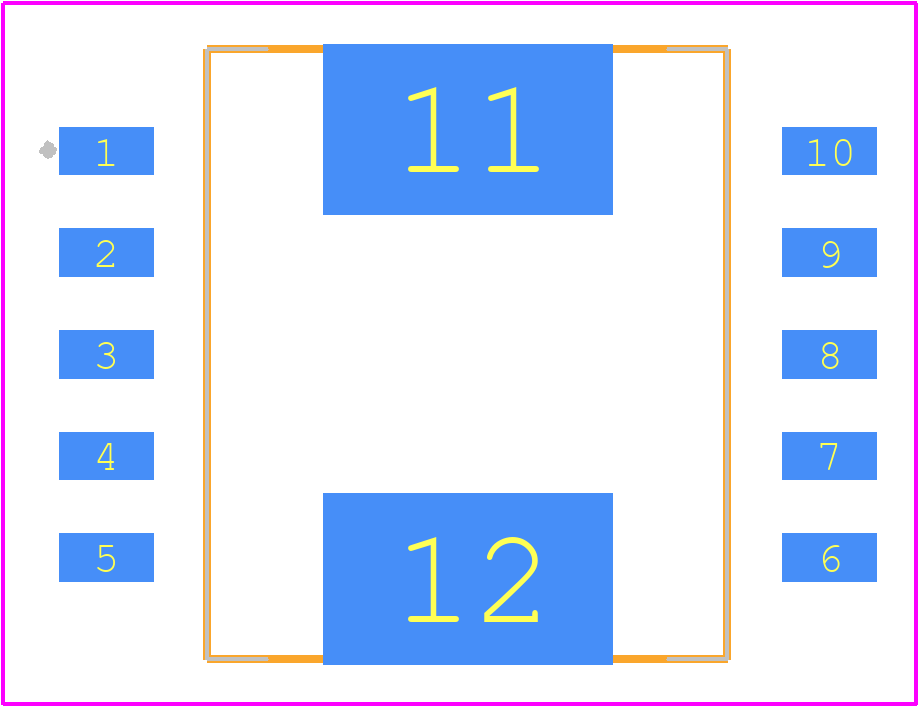

PCB Footprints
CST2010-100LD - COILCRAFT PCB footprint - Other - Other - CST2010-100LD
click to zoom
3D Models
CST2010-100LD - COILCRAFT - 3D model - Other - CST2010-100LD
click to zoom

CST2010-100LD Details

  • Manufacturer Part Number:

    CST2010-100LD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    8

  • Approvals:

    AEC-Q200

  • ET Product-Min:

    254 V-us

  • Height:

    10.5 mm

  • Length:

    14.55 mm

  • Load Resistance:

    2.5 Ω

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Max:

    1000 kHz

  • Operating Frequency-Min:

    2 kHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Peak Primary Current:

    47 A

  • Primary Type:

    WOUND PRIMARY

  • Secondary Inductance:

    8500 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver - Matte Tin - with Nickel barrier

  • Transformer Type:

    CURRENT SENSE TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:100

  • Width:

    13 mm

CST2010-100LD Frequently Asked Questions (FAQs)

  • The recommended land pattern for the CST2010-100LD is a rectangular pad with a minimum size of 2.5 mm x 1.5 mm, with a non-solder mask defined (NSMD) pad shape.
  • The CST2010-100LD is rated for operation up to 125°C, but it's recommended to derate the current rating by 1.5% for every degree above 80°C to ensure reliable operation.
  • Handle the CST2010-100LD by the body, not the leads, to prevent damage. Avoid bending or flexing the leads, and use a pick-and-place machine or a vacuum pickup tool to minimize mechanical stress.
  • The recommended soldering profile for the CST2010-100LD is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C, and a cooling rate of 4°C/second maximum.
  • The CST2010-100LD is designed to withstand moderate vibration, but it's recommended to secure the component to the PCB using a suitable adhesive or mechanical fastening to prevent movement and ensure reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CST2010-100LD Overview

Use the download button to access the CST2010-100LD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CST20, or try a keyword search, such as Current Sense Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
