CST3015-400ED - COILCRAFT

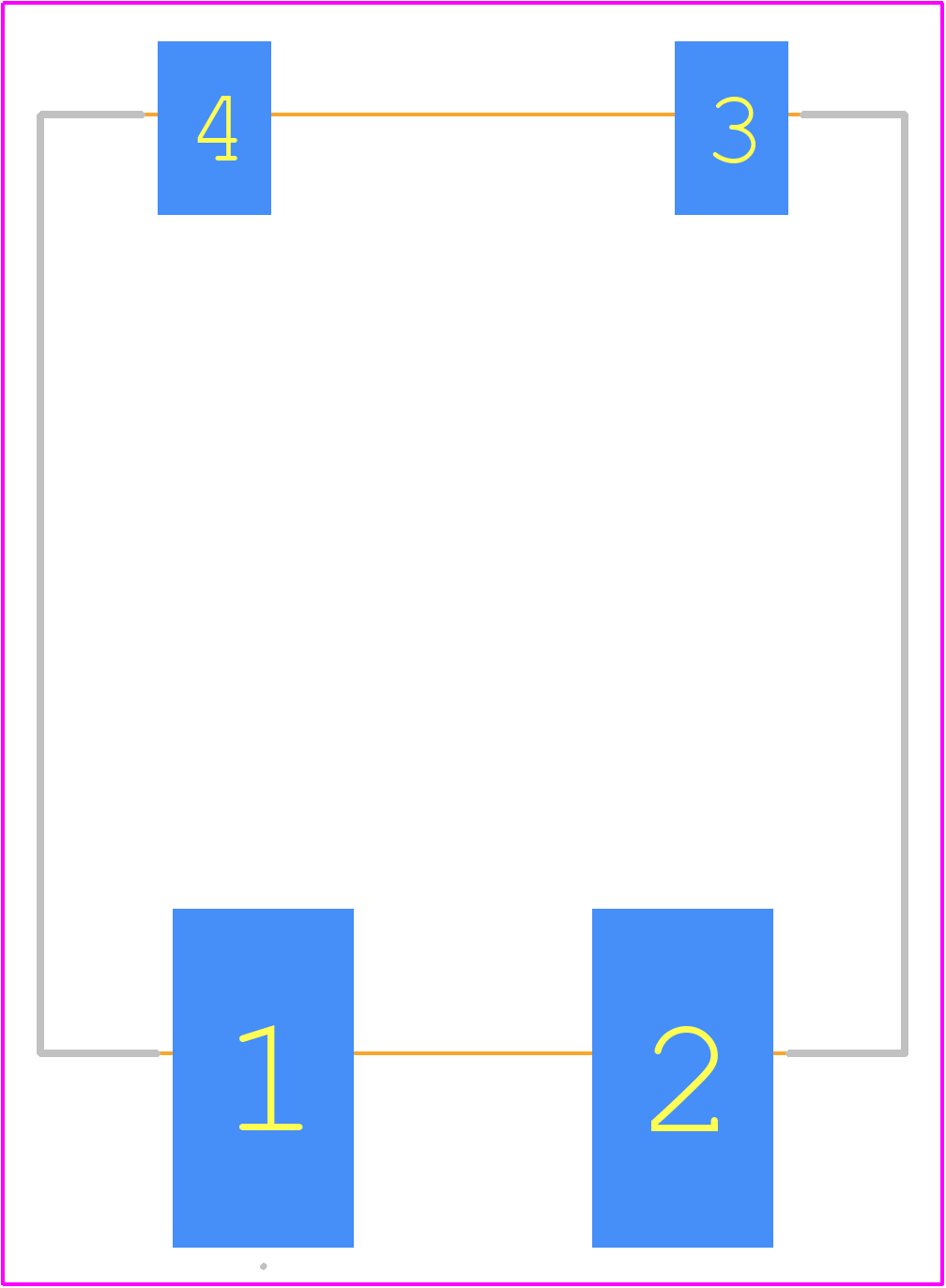

CST3015-400ED Details

• Manufacturer Part Number:

  CST3015-400ED

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• Manufacturer:

  Coilcraft Inc

• YTEOL:

  8

• Additional Feature:

  LENGTH AND HEIGHT DIMENSION INCLUDE TERMINAL ALSO

• Approvals:

  AEC-Q200

• ET Product-Min:

  2553 V-us

• Height:

  15.2 mm

• JESD-609 Code:

  e1

• Length:

  30 mm

• Load Resistance:

  4 Ω

• Mounting Feature:

  SURFACE MOUNT

• Operating Frequency-Max:

  1000 kHz

• Operating Frequency-Min:

  0.2 kHz

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  TR, EMBOSSED PLASTIC, 13 INCH

• Peak Primary Current:

  83 A

• Primary Type:

  WOUND PRIMARY

• Secondary Inductance:

  51200 µH

• Surface Mount:

  YES

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Transformer Type:

  CURRENT SENSE TRANSFORMER

• Turns Ratio (Np:Ns):

  1:400

• Width:

  23 mm
