Part Image

CSTNE20M0VH3C000R0 - Murata Electronics

Description: Resonators 20.0000MHz 15pF SMD CHP Rsntr 0.07% AUTO

Download CSTNE20M0VH3C000R0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

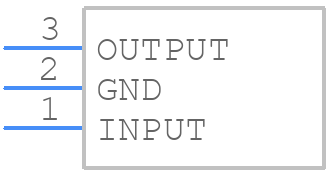

CSTNE20M0VH3C000R0 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
CSTNE20M0VH3C000R0 - Murata Electronics PCB footprint - Other - Other - CSTCE-V_C
click to zoom
3D Models
CSTNE20M0VH3C000R0 - Murata Electronics - 3D model - Other - CSTCE-V_C
click to zoom

CSTNE20M0VH3C000R0 Details

  • Manufacturer Part Number:

    CSTNE20M0VH3C000R0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 3 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.60.00.80

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Additional Feature:

    TR, 7 INCH

  • Crystal/Resonator Type:

    CERAMIC RESONATOR

  • Frequency Stability:

    0.13%

  • Frequency Tolerance (MHz):

    700

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    20 MHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Physical Dimension:

    L3.2XB1.3XH0.9 (mm)/L0.126XB0.051XH0.035 (inch)

  • Surface Mount:

    YES

CSTNE20M0VH3C000R0 Frequently Asked Questions (FAQs)

  • A good PCB layout for the CSTNE20M0VH3C000R0 involves keeping the oscillator as close to the microcontroller as possible, using a ground plane under the oscillator, and minimizing the length of the clock signal traces.
  • To ensure reliable startup, make sure the power supply voltage is stable and within the recommended range, and that the oscillator is properly decoupled with a 0.1uF capacitor between VCC and GND.
  • The CSTNE20M0VH3C000R0 has a frequency deviation of ±20 ppm over the operating temperature range of -40°C to 85°C.
  • The CSTNE20M0VH3C000R0 is designed to withstand vibrations up to 10G, but it's recommended to consult with Murata's application engineers for specific vibration requirements.
  • The CSTNE20M0VH3C000R0 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and handling to prevent damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CSTNE20M0VH3C000R0 Overview

Use the download button to access the CSTNE20M0VH3C000R0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CSTNE, or try a keyword search, such as Ceramic Resonators

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
