Technical Content
Part Image

CT-212.500MCC-T - TXC CORPORATION

Description: Standard Clock Oscillators 212.500MHz 2.5Volt 100ppm -10C +70C

Download CT-212.500MCC-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

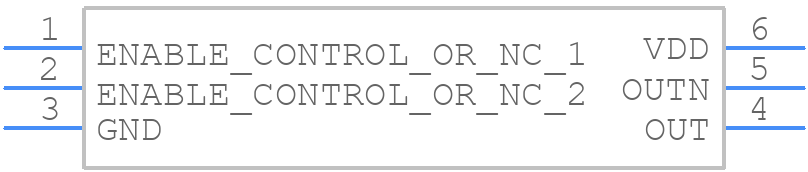

Symbol
CT-212.500MCC-T - TXC CORPORATION - PCB symbol
click to zoom
PCB Footprints
CT-212.500MCC-T - TXC CORPORATION PCB footprint - Other - Other - CT-212.500MCC-T-3
click to zoom
3D Models
CT-212.500MCC-T - TXC CORPORATION - 3D model - Other - CT-212.500MCC-T-3
click to zoom

CT-212.500MCC-T Details

  • Manufacturer Part Number:

    CT-212.500MCC-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 6 PIN

  • Manufacturer:

    TXC Corporation

  • Additional Feature:

    TRI-STATE; ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT

  • Fall Time-Max:

    1 ns

  • Frequency Tolerance:

    100 ppm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    212.5 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Oscillator Type:

    SAW OSCILLATOR

  • Output Compatibility:

    LVDS

  • Package Equivalence Code:

    SOLCC6,.12

  • Physical Dimension:

    5.0mm x 3.2mm x 1.2mm

  • Rise Time-Max:

    1 ns

  • Supply Current-Max:

    80 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

CT-212.500MCC-T Frequently Asked Questions (FAQs)

  • TXC Corporation recommends a symmetrical PCB layout with a ground plane underneath the crystal resonator to minimize electromagnetic interference. A minimum of 10mm clearance around the device is also recommended.
  • The CT-212.500MCC-T is designed to withstand vibration and shock according to IEC 60068-2-6 and IEC 60068-2-27 standards, respectively. However, it's essential to follow proper mounting and handling procedures to ensure the device's reliability.
  • While the datasheet specifies an operating temperature range of -20°C to 70°C, TXC Corporation recommends derating the frequency tolerance by 0.05 ppm/°C for temperatures above 50°C to ensure optimal performance.
  • Yes, the CT-212.500MCC-T is designed to operate in humid environments, but it's essential to follow proper storage and handling procedures to prevent moisture ingress. TXC Corporation recommends storing the devices in a dry, nitrogen-filled environment.
  • TXC Corporation recommends a soldering profile with a peak temperature of 260°C, a dwell time of 10-30 seconds, and a cooling rate of 4°C/second to prevent thermal shock and ensure reliable solder joints.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CT-212.500MCC-T Overview

Use the download button to access the CT-212.500MCC-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CT-21, or try a keyword search, such as Fixed Clock SAW Oscillators
