CT128 - Coto Technology

Description: Solid State Relays - PCB Mount 500mW 40V 4.5A 1FormA ThruHole 6Pin

Download CT128 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

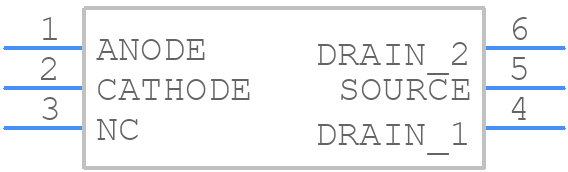

CT128 - Coto Technology - PCB symbol
click to zoom
PCB Footprints
CT128 - Coto Technology PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - CT128
click to zoom
3D Models
CT128 - Coto Technology - 3D model - Dual-In-Line Packages - CT128
click to zoom

CT128 Details

  • Manufacturer Part Number:

    CT128

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8536.41.00.60

  • Manufacturer:

    Coto Technology USA

  • YTEOL:

    5.94

  • Configuration:

    SINGLE

  • Control Current:

    3 A

  • Control Voltage:

    1.5 V

  • Forward Current-Max:

    0.05 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    1500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    4.5 A

  • On-state Resistance-Max:

    0.05 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    4.1 mm

  • Overall Length:

    9.1 mm

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

CT128 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CT128 is -40°C to 85°C (-40°F to 185°F).
  • Yes, the CT128 is designed to withstand high-vibration environments and can operate in applications with vibrations up to 10G.
  • The maximum switching current for the CT128 is 2A. However, it's recommended to derate the current to 1.5A for continuous operation.
  • Yes, the CT128 is designed and manufactured to meet the requirements of safety-critical applications, including IEC 61508 and IEC 60601-1.
  • Yes, the CT128 has a moisture-resistant design and can operate in humid or wet environments, but it's recommended to follow the manufacturer's guidelines for sealing and protection.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CT128 Overview

Use the download button to access the CT128 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Solid State Relays
