Allegro recommends a 4-layer PCB with a solid ground plane, and the use of vias to connect the ground plane to the device's GND pins. Additionally, keep the current sense lines as short as possible and away from noise sources.
To ensure accurate current measurement, use a low-impedance current sense resistor, keep the sense lines as short as possible, and avoid routing high-frequency signals near the sense lines. Also, calibrate the device according to the datasheet's calibration procedure.
The maximum allowable voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device. It's recommended to use a voltage regulator or a voltage clamp to ensure the VCC pin voltage remains within the specified range.
The CT426-HSN820MR is rated for operation up to 150°C. However, the device's accuracy and reliability may degrade at high temperatures. It's recommended to derate the device's specifications according to the datasheet's thermal derating curves.
To troubleshoot issues, start by verifying the device's power supply, checking for proper PCB layout and routing, and ensuring correct calibration. Use an oscilloscope to monitor the device's output signals and verify that they are within the specified ranges. Consult the datasheet and application notes for additional troubleshooting guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CT426-HSN820MR Overview

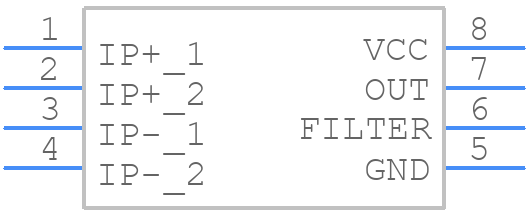

Use the download button to access the CT426-HSN820MR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CT426,
or try a keyword search, such as Other Sensors/Transducers
