Crocus Technology recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended for the top and bottom layers.
To ensure reliable operation, it's essential to follow the recommended operating conditions, including voltage, current, and temperature. Additionally, consider using a thermal interface material (TIM) between the device and the heat sink, and ensure good airflow around the device.
The CT426-HSN830DR has built-in ESD protection, but it's still essential to follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and storing the devices in anti-static packaging.
While the CT426-HSN830DR is a robust device, it's still important to consider the environmental conditions. For high-vibration or high-shock environments, ensure the device is properly secured to the PCB, and consider using a conformal coating or potting compound to protect the device and PCB.
Crocus Technology recommends following the JEDEC J-STD-020D.1 standard for soldering and rework conditions. The recommended peak reflow temperature is 260°C, with a maximum of 3 reflow cycles.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CT426-HSN830DR Overview

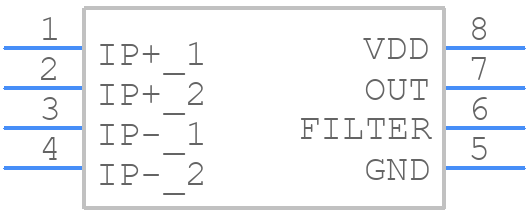

Use the download button to access the CT426-HSN830DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CT426,
or try a keyword search, such as Other Sensors/Transducers
