Crocus Technology recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended for the top and bottom layers. Additionally, a thermal pad on the bottom of the package should be connected to a heat sink or a thermal interface material.
To ensure reliable operation, it's essential to follow the recommended operating conditions, including voltage, current, and temperature ranges. Additionally, consider implementing thermal monitoring and protection mechanisms, such as thermal shutdown or over-temperature protection, to prevent damage from excessive heat.
Crocus Technology recommends using a reflow soldering process with a peak temperature of 260°C (500°F) for a maximum of 30 seconds. Hand soldering is not recommended due to the device's small size and high pin count. It's also essential to follow the recommended land pattern and solder mask design to ensure reliable connections.
To prevent ESD damage, handle the device with ESD-protective materials, such as wrist straps, mats, and bags. Ensure that all equipment and tools are properly grounded, and follow proper assembly and handling procedures to minimize the risk of ESD damage.
Crocus Technology recommends performing functional testing, including DC and AC characterization, to ensure the device meets the specified performance parameters. Additionally, consider performing environmental testing, such as temperature cycling and vibration testing, to validate the device's reliability and robustness.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CT426-HSN830MR Overview

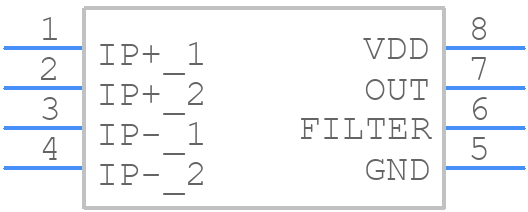

Use the download button to access the CT426-HSN830MR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CT426,
or try a keyword search, such as Other Sensors/Transducers
