Technical Content
Part Image

CTB7000/36 - CAMDENBOSS

Description: Conn Terminal Block 36 POS 5mm Solder ST Thru-Hole

Download CTB7000/36 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

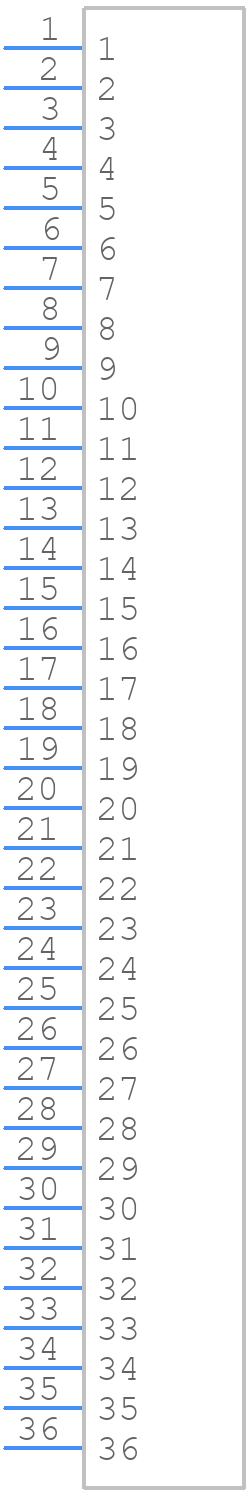

Symbol
CTB7000/36 - CAMDENBOSS - PCB symbol
click to zoom

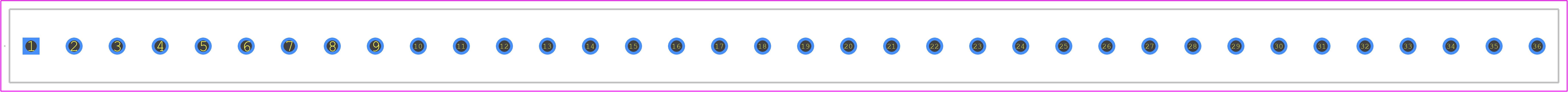

PCB Footprints
CTB7000/36 - CAMDENBOSS PCB footprint - Other - Other - CTB7000/36-1
click to zoom
3D Models
CTB7000/36 - CAMDENBOSS - 3D model - Other - CTB7000/36-1
click to zoom

CTB7000/36 Details

  • Manufacturer Part Number:

    CTB7000/36

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    CamdenBoss Ltd

  • YTEOL:

    5.52

  • Additional Feature:

    STANDARD: UL 94V-0, PC

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    36

  • Rated Current:

    16 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; IMQ; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2 mm2

  • Wire Gauge:

    12 AWG

CTB7000/36 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
  • Yes, the CTB7000/36 is suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors such as moisture, UV, and extreme temperatures.
  • The maximum operating temperature for the CTB7000/36 is 85°C, but it's recommended to derate the current capacity at higher temperatures to ensure reliable operation.
  • Yes, the CTB7000/36 is designed to withstand vibrations, but it's essential to ensure proper mounting and securing of the device to prevent damage or dislodging.
  • The recommended wire size for the CTB7000/36 is 0.5 mm² to 2.5 mm², depending on the application and current requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CTB7000/36 Overview

Use the download button to access the CTB7000/36 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CTB70, or try a keyword search, such as Terminals and Terminal Blocks
