- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CTB9358/8
- Part Number CTB9358/8
- Manufacturer CAMDENBOSS
- Pin Count 8
- Part Category Connector
- Package Category Header, Shrouded - Right Angle PTH Box
- Footprint Name Header, Shrouded - Right Angle PTH Box - CTB9358/8
- Released Date May 22, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
CTB9358/8 Details
-
Manufacturer Part Number:
CTB9358/8
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
CamdenBoss Ltd
-
Additional Feature:
PA66, UL 94V-0
-
Fastening Method:
CONNECTOR
-
Mounting Type:
BOARD
-
Number of Decks:
1
-
Number of Rows:
1
CTB9358/8 Frequently Asked Questions (FAQs)
-
The operating temperature range of the CTB9358/8 is -40°C to +125°C.
-
Yes, the CTB9358/8 is RoHS and REACH compliant, making it suitable for use in the European Union.
-
The CTB9358/8 has a flammability rating of UL94-V0, indicating that it is self-extinguishing and meets the highest level of flame retardancy.
-
While the CTB9358/8 is designed for indoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures.
-
The recommended torque for the screws on the CTB9358/8 is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
Trust Checks
Expert Contribution
System Verified
Community Approved
CTB9358/8 Overview

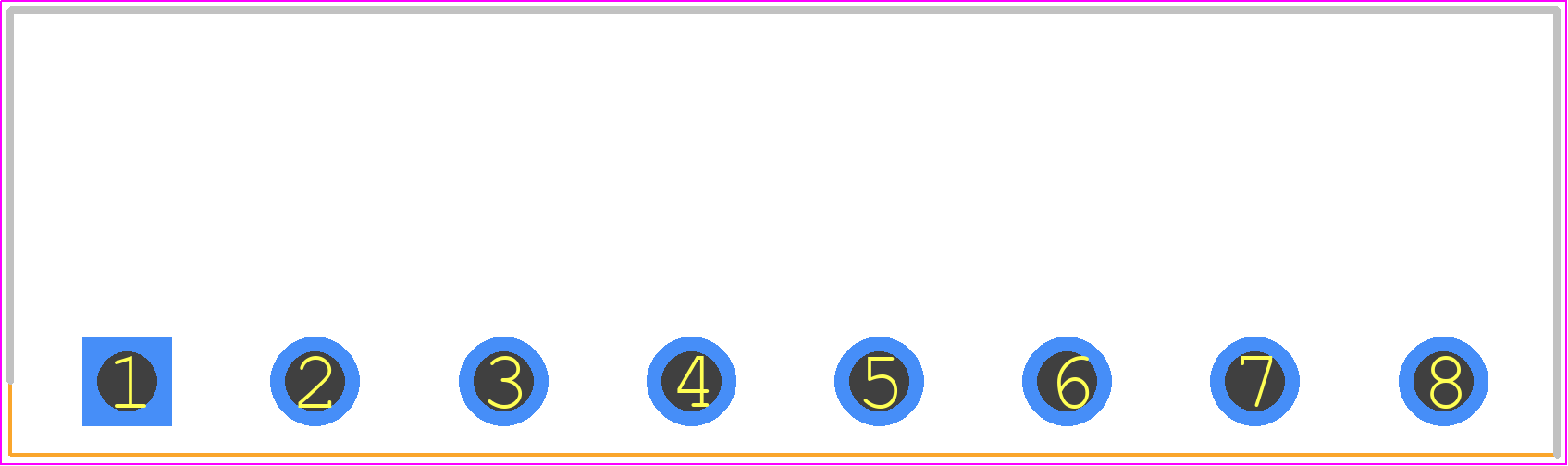

Use the download button to access the CTB9358/8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CTB93,
or try a keyword search, such as Terminals and Terminal Blocks
