Part Image

CTBP9308/12AO - CAMDENBOSS

Description: 5.08mm Pluggable Terminal Block Male Header Open Ends 12 Pole

Download CTBP9308/12AO Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CTBP9308/12AO - CAMDENBOSS - PCB symbol
click to zoom

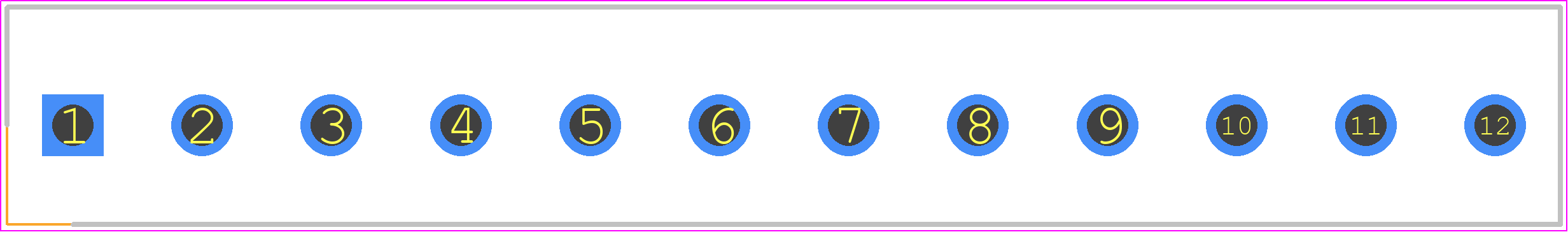

PCB Footprints
CTBP9308/12AO - CAMDENBOSS PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - CTBP9308/12AO
click to zoom
3D Models
CTBP9308/12AO - CAMDENBOSS - 3D model - Header, Shrouded - Straight PTH Box - CTBP9308/12AO
click to zoom

CTBP9308/12AO Details

  • Manufacturer Part Number:

    CTBP9308/12AO

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    CamdenBoss Ltd

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

CTBP9308/12AO Frequently Asked Questions (FAQs)

  • The operating temperature range of the CTBP9308/12AO is -40°C to +85°C.
  • Yes, the CTBP9308/12AO is RoHS and REACH compliant, making it suitable for use in the European Union.
  • The CTBP9308/12AO has a flammability rating of UL94-V0, indicating that it is self-extinguishing and meets the highest level of flame retardancy.
  • While the CTBP9308/12AO is designed for indoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures.
  • The recommended torque for the screws on the CTBP9308/12AO is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CTBP9308/12AO Overview

Use the download button to access the CTBP9308/12AO schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CTBP9, or try a keyword search, such as Terminals and Terminal Blocks
