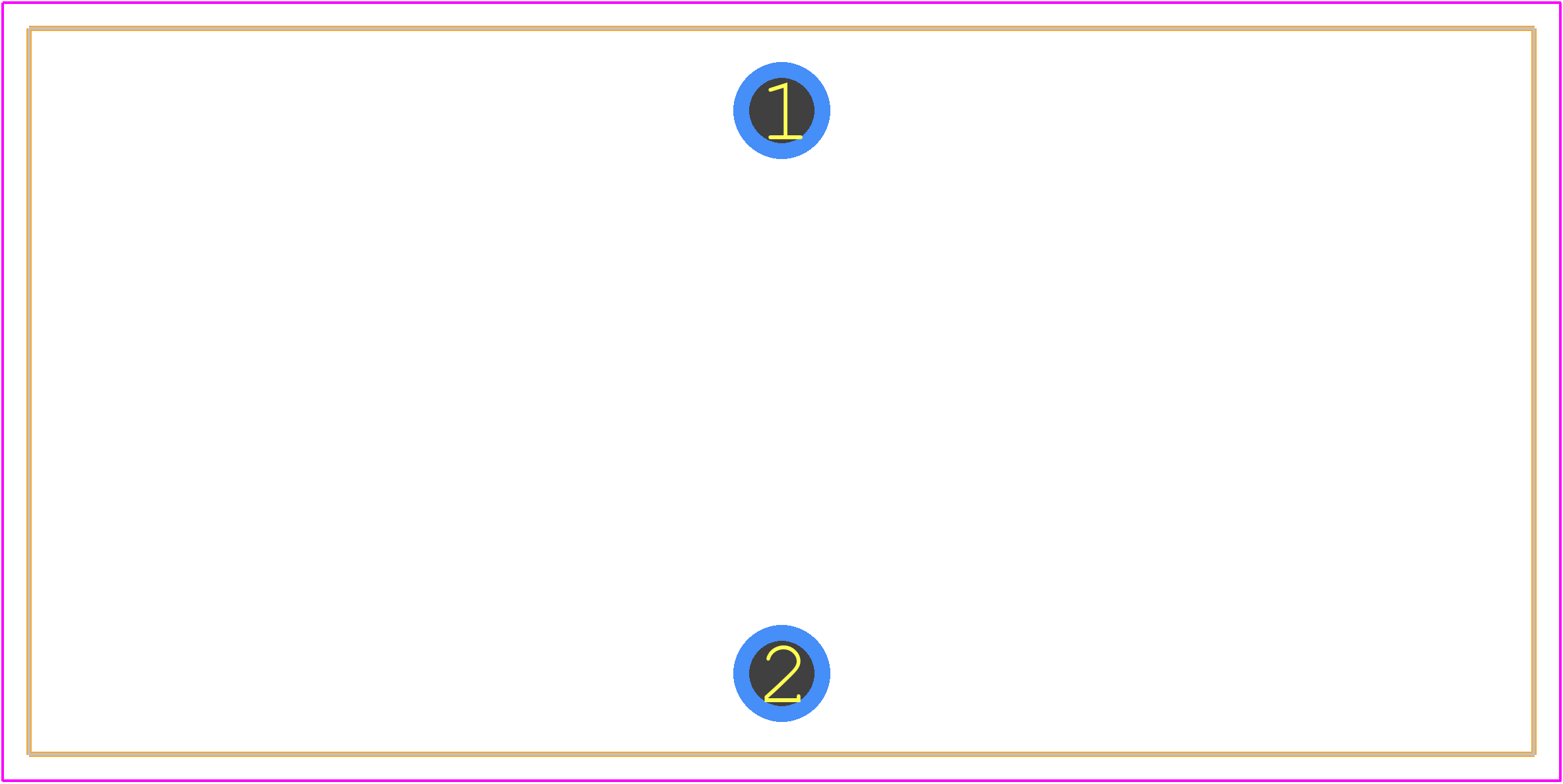

CTX100-10-52-R footprint, schematic symbol and 3D model by COILTRONICS

Symbol

PCB Footprints

3D Models

CTX100-10-52-R Details

The recommended PCB land pattern for the CTX100-10-52-R can be found in the Coiltronics application note AN-001, which provides detailed guidelines for PCB layout and assembly.
The CTX100-10-52-R is rated for operation up to 125°C, but derating may be necessary for temperatures above 105°C. Consult the Coiltronics temperature derating chart for specific guidance.
To ensure optimal reliability, handle the CTX100-10-52-R by the body, avoiding touching the leads or core. Store the components in a dry, clean environment, and follow proper soldering and assembly procedures.
Yes, the CTX100-10-52-R is compatible with lead-free soldering processes, but ensure that the peak reflow temperature does not exceed 260°C.
The typical MOQ for the CTX100-10-52-R is 1000 pieces, but this may vary depending on the specific requirements and negotiations with Coiltronics or authorized distributors.

Expert Contribution

System Verified

Community Approved

Use the download button to access the CTX100-10-52-R schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CTX10, or try a keyword search, such as Fixed Inductors
