CU20027-Y1A footprint, schematic symbol and 3D model by Noritake

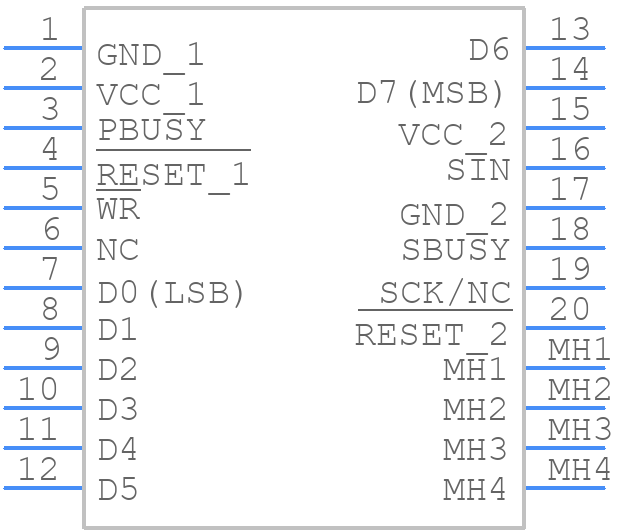

Symbol

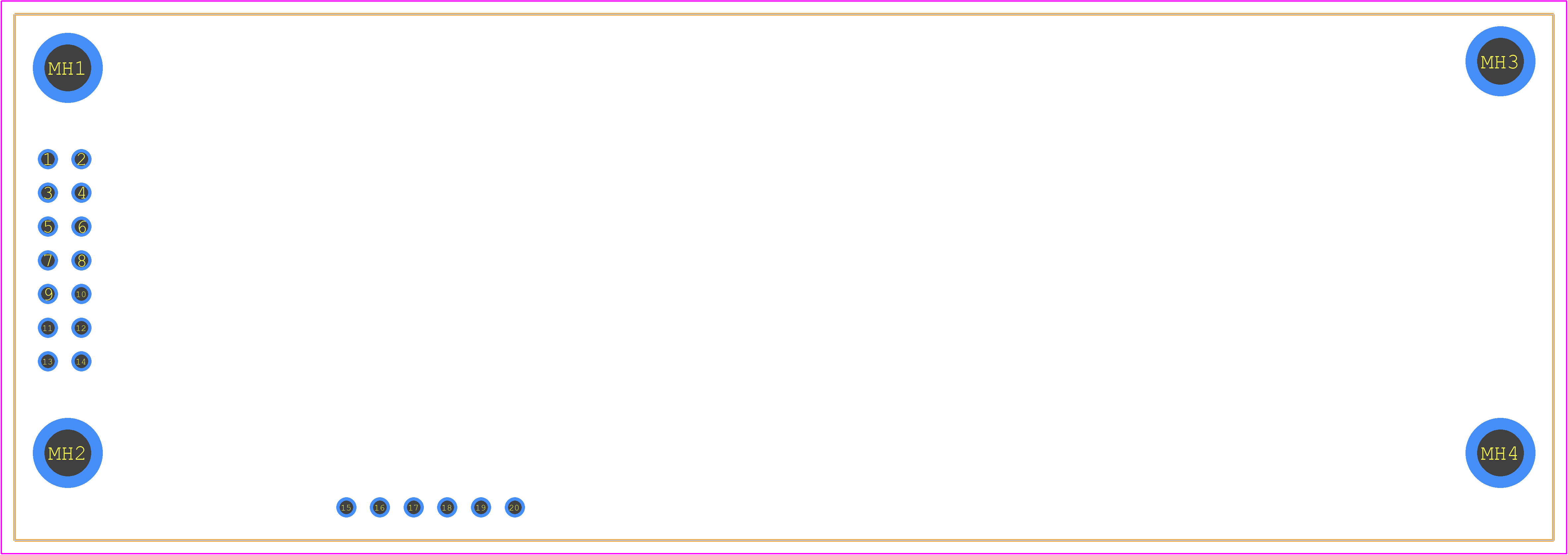

PCB Footprints

3D Models

CU20027-Y1A Details

Manufacturer Part Number:
CU20027-Y1A
Part Life Cycle Code:
End Of Life
Manufacturer:
Noritake Co Inc
YTEOL:
0.4
Character Font Type:
5x8 Dot
Characters Per Row:
20
Color@Wavelength:
BLUE-GREEN
Display Format:
20X2
Display Height:
7.19 mm
Number of Functions:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
DOT MATRIX VACUUM FLUORESCENT CHARACTER DISPLAY MODULE
Overall Depth:
9.3 mm
Overall Height:
37 mm
Overall Length:
116 mm
Rows Per Display:
2
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V

Store in a dry, cool place away from direct sunlight, with a relative humidity of 60% or less, and a temperature range of 10°C to 30°C.
Yes, CU20027-Y1A is designed to withstand vibrations up to 10G, but it's recommended to consult with Noritake Co Inc for specific vibration profiles and mounting recommendations.
Use a soft, dry cloth to wipe the display. Avoid using chemicals, abrasive materials, or excessive moisture, which can damage the display or compromise its performance.
The recommended operating temperature range for CU20027-Y1A is -20°C to 70°C. However, it's essential to consult the datasheet for specific temperature-related specifications and derating guidelines.
CU20027-Y1A is designed to operate in environments with relative humidity up to 80%. However, it's recommended to consult with Noritake Co Inc for specific humidity-related guidelines and precautions.

Expert Contribution

System Verified

Community Approved

Use the download button to access the CU20027-Y1A schematic symbol, PCB footprint, and 3D model.
