CU20029-UW1J footprint, schematic symbol and 3D model by NORITAKE ITRON

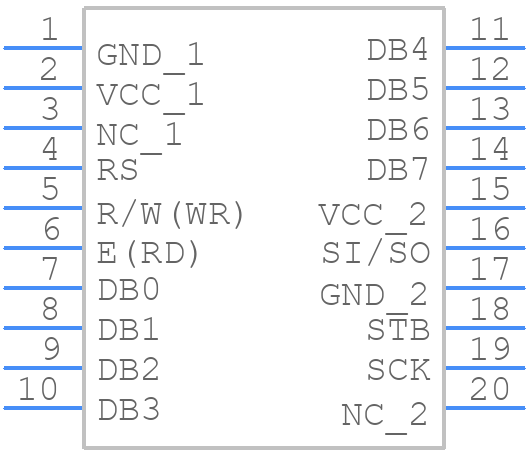

Symbol

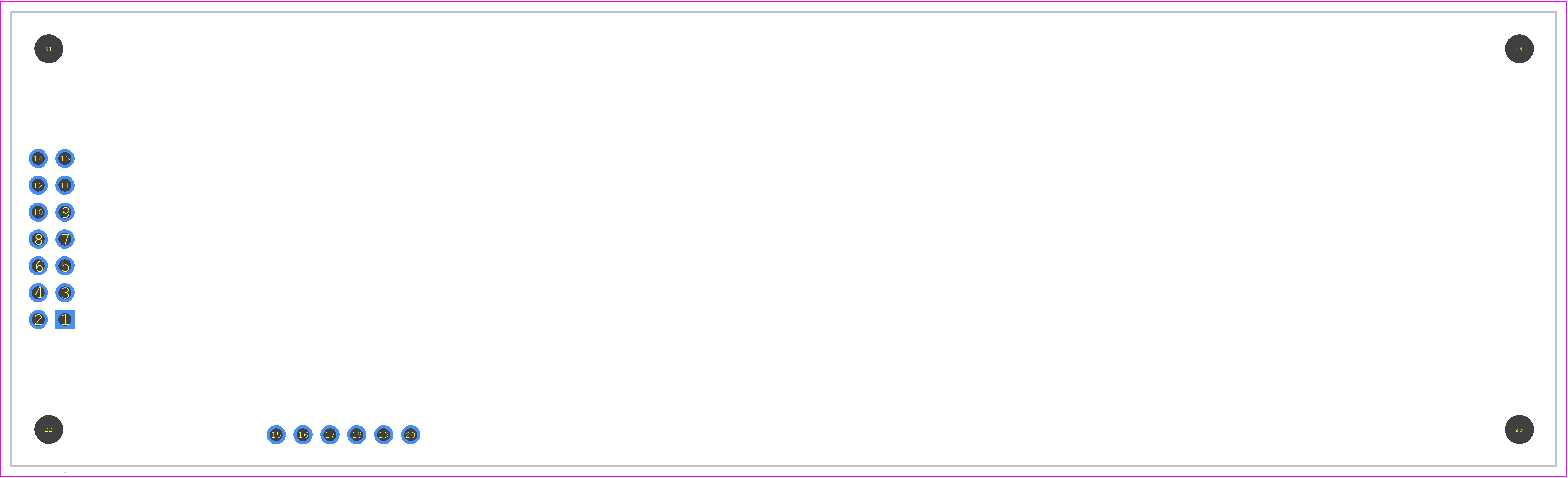

PCB Footprints

3D Models

CU20029-UW1J Details

Manufacturer Part Number:
CU20029-UW1J
Rohs Code:
Yes
Part Life Cycle Code:
Active
Manufacturer:
Noritake Co Inc
YTEOL:
6
Character Font Type:
5x8 + CSR
Characters Per Row:
20
Display Format:
20X2
Horizontal Pixel Count:
102.6 Pixel
Number of Functions:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
DOT MATRIX VACUUM FLUORESCENT CHARACTER DISPLAY MODULE
Overall Depth:
15.9 mm
Overall Height:
43 mm
Overall Length:
146 mm
Rows Per Display:
2
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Vertical Pixel Count:
18.8 Pixel
Viewing Area Height:
19 mm
Viewing Area Length:
103 mm

Store in a dry, cool place away from direct sunlight, with a temperature range of 10°C to 30°C and humidity below 70%.
Yes, but ensure proper sealing and protection from environmental factors like moisture, UV, and extreme temperatures.
The maximum operating temperature is 85°C, but it's recommended to operate within 70°C for optimal performance and lifespan.
Handle the component by the edges, avoid touching the electrodes, and use an anti-static wrist strap or mat to prevent ESD damage.
Use a soldering temperature profile with a peak temperature of 240°C, a dwell time of 1-2 seconds, and a cooling rate of 4°C/second.

Community Provided

System Verified

Community Approved

Use the download button to access the CU20029-UW1J schematic symbol, PCB footprint, and 3D model.
