Store in a dry, cool place away from direct sunlight, with a temperature range of 10°C to 30°C and humidity below 70%. Avoid storing in areas with high temperatures, high humidity, or exposure to corrosive substances.
While CU22042-Y1A is designed to be robust, it's recommended to consult with Noritake Co Inc or a qualified engineer to assess the specific vibration requirements and ensure the component can withstand the intended application.
Follow standard ESD precautions when handling CU22042-Y1A, such as using an ESD wrist strap, mat, or workstation, and ensuring all equipment is properly grounded. Avoid touching the component's pins or electrical contacts.
The recommended soldering temperature is 250°C to 260°C, with a soldering time of 3 to 5 seconds. However, it's essential to consult the datasheet and follow Noritake Co Inc's specific guidelines for soldering and reflow profiles.
While CU22042-Y1A has some level of moisture resistance, it's not designed for applications with extreme humidity or moisture. Consult with Noritake Co Inc or a qualified engineer to assess the specific environmental requirements and ensure the component's suitability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CU22042-Y1A Overview

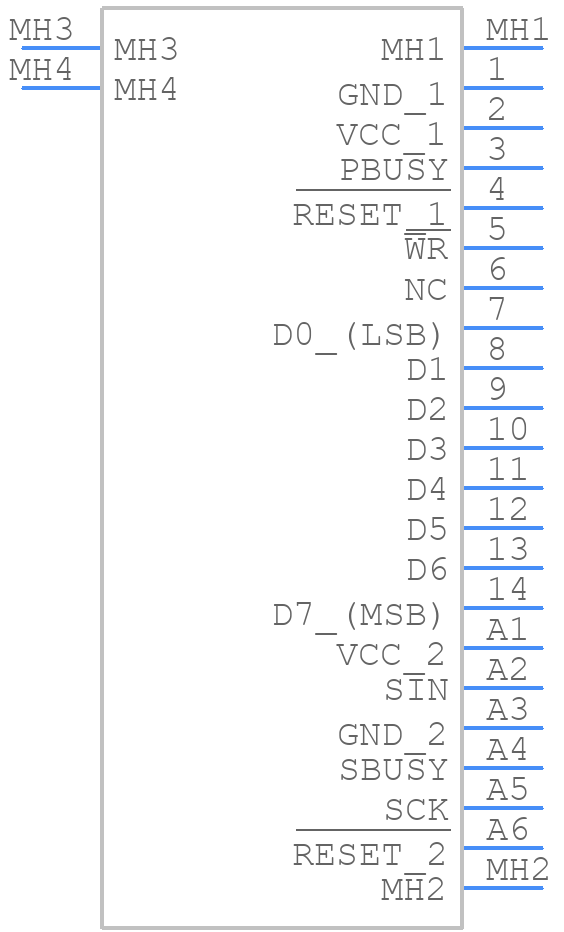

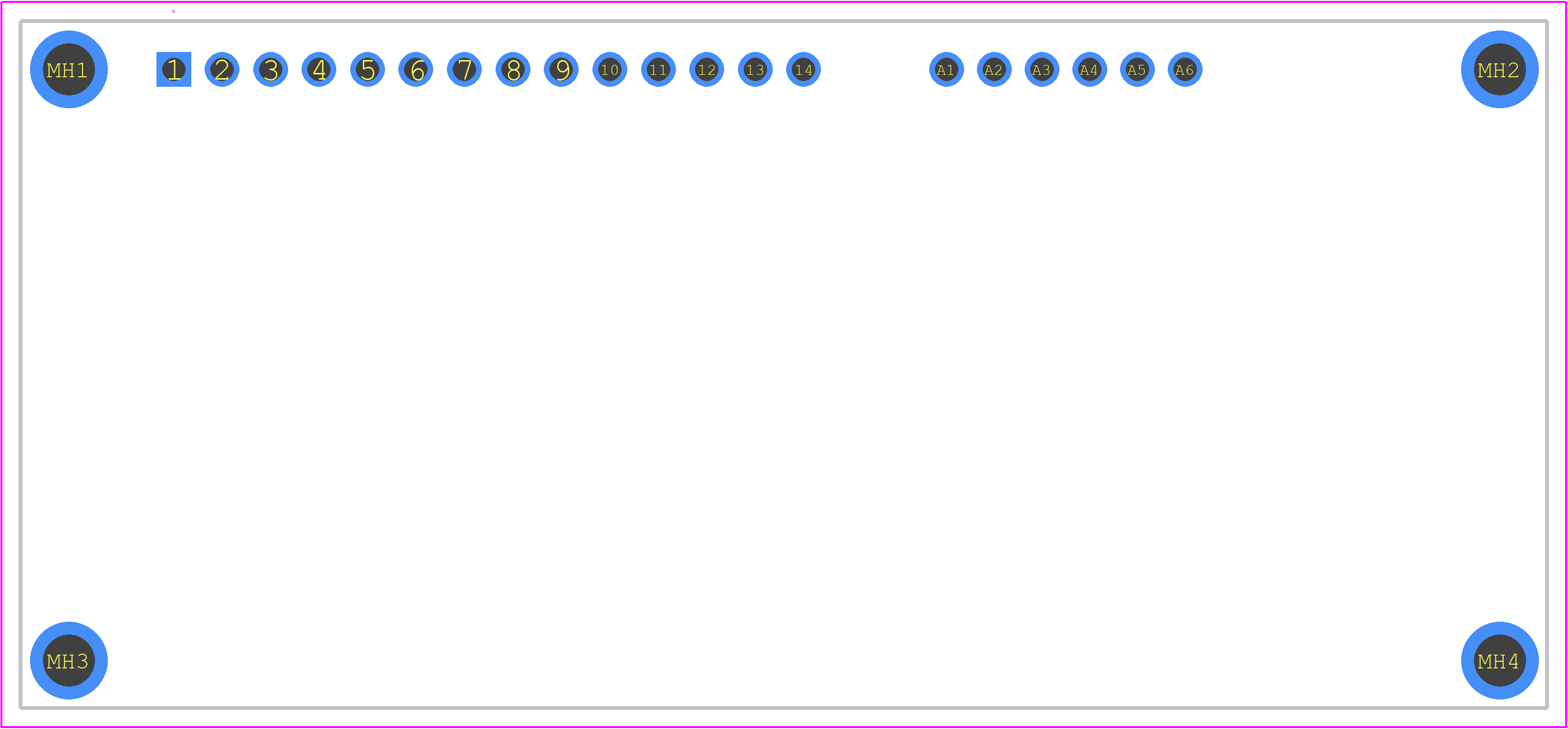

Use the download button to access the CU22042-Y1A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CU220,
or try a keyword search, such as Other Optoelectronics
