Part Image

CUS-13TB - Nidec Copal

Description: Slide Switches smd low profile slide switch, 1P3T, gull wing 300MA 4V ,-20°C ~ 70°C

Download CUS-13TB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

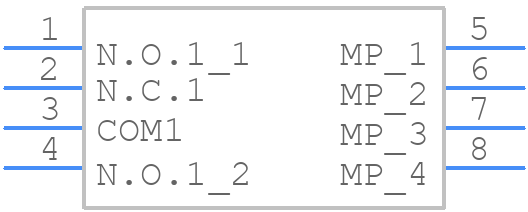

CUS-13TB - Nidec Copal - PCB symbol
click to zoom
PCB Footprints
CUS-13TB - Nidec Copal PCB footprint - Other - Other - CUS-13TB-1
click to zoom
3D Models
CUS-13TB - Nidec Copal - 3D model - Other - CUS-13TB-1
click to zoom

CUS-13TB Details

  • Manufacturer Part Number:

    CUS-13TB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.50

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Nidec Copal Electronics Corporation

  • YTEOL:

    6.4

  • Body Breadth:

    2.6 mm

  • Body Height:

    1.4 mm

  • Body Length or Diameter:

    9.7 mm

  • Contact Current(DC)-Max:

    0.3 A

  • Contact (DC) Max Rating R Load:

    .3A@4VDC

  • Contact Voltage(DC)-Max:

    4 V

  • Electrical Life:

    10000 Cycle(s)

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT-RIGHT ANGLE

  • Number of Positions:

    3

  • Operating Force-Max:

    3.7 N

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR

  • Sealing:

    MOISTURE PROOF

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SP3T

  • Switch Type:

    SLIDE SWITCH

  • Terminal Finish:

    Gold (Au)

  • Termination Type:

    SOLDER

CUS-13TB Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the Nidec Copal Electronics Corporation's application note or by contacting their technical support team. A general guideline is to follow the JEDEC standard for QFN packages.
  • To ensure reliable soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. Additionally, use a solder paste with a melting point compatible with the component's temperature rating.
  • The maximum operating temperature range for the CUS-13TB is -40°C to 125°C. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures.
  • The CUS-13TB is designed to withstand moderate vibrations. However, for high-vibration environments, it's recommended to consult with Nidec Copal Electronics Corporation's technical support team to determine the suitability of the component for your specific application.
  • Store the CUS-13TB in a dry, cool place, away from direct sunlight and moisture. Handle the component by the edges to prevent damage to the pins or the package. Follow the ESD precautions outlined in the datasheet to prevent electrostatic discharge damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CUS-13TB Overview

Use the download button to access the CUS-13TB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CUS-1, or try a keyword search, such as Slide Switches
