Part Image

CX90BW-16P - Hirose

Description: USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Surface Mount, Right Angle; Through Hole

Download CX90BW-16P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

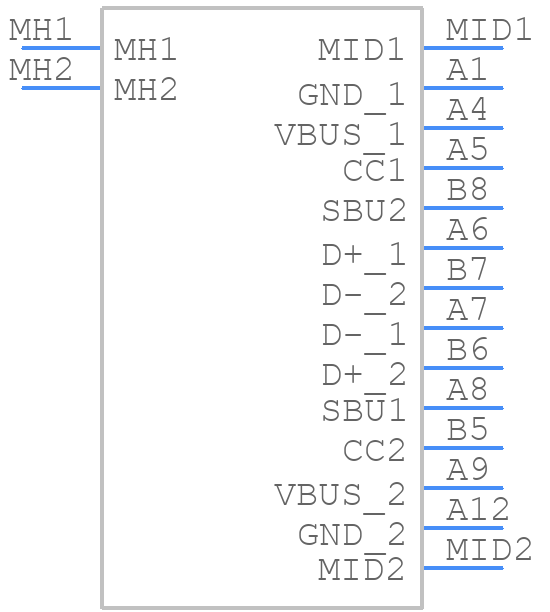

CX90BW-16P - Hirose - PCB symbol
click to zoom
PCB Footprints
CX90BW-16P - Hirose PCB footprint - Other - Other - CX90BW-16P-5
click to zoom
3D Models
CX90BW-16P - Hirose - 3D model - Other - CX90BW-16P-5
click to zoom

CX90BW-16P Details

  • Manufacturer Part Number:

    CX90BW-16P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    USB CONNECTOR

CX90BW-16P Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal contacts. This ensures proper alignment and prevents damage to the connector.
  • Yes, the CX90BW-16P connector is designed to withstand high-vibration environments. It has a ruggedized design and a secure locking mechanism to ensure reliable connections even in harsh conditions.
  • The CX90BW-16P connector has an operating temperature range of -40°C to +105°C. However, it's recommended to consult the datasheet for specific temperature ratings for different applications.
  • Yes, the CX90BW-16P connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
  • The recommended torque value for the CX90BW-16P connector's screw locks is 0.5 N·m to 1.5 N·m. It's essential to follow the recommended torque value to ensure reliable connections and prevent damage to the connector.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CX90BW-16P Overview

Use the download button to access the CX90BW-16P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CX90B, or try a keyword search, such as Telecom and Datacom Connectors
