CX93011-22Z - Conexant Systems

Description: CX93011

Download CX93011-22Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

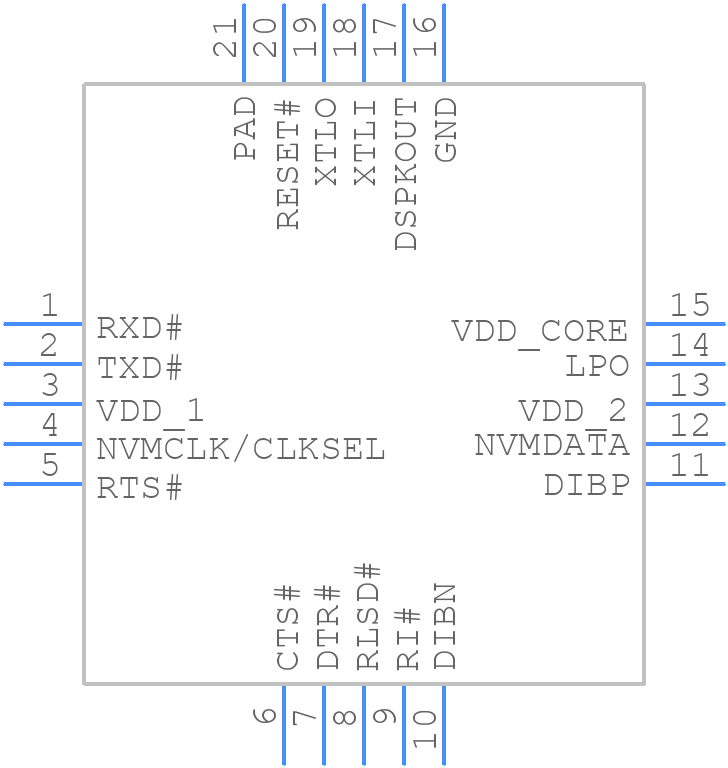

CX93011-22Z - Conexant Systems - PCB symbol
click to zoom
PCB Footprints
CX93011-22Z - Conexant Systems PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CX93011
click to zoom
3D Models
CX93011-22Z - Conexant Systems - 3D model - Quad Flat No-Lead - CX93011
click to zoom

CX93011-22Z Details

  • Manufacturer Part Number:

    CX93011-22Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    QFN

  • Package Description:

    ROHS COMPLIANT, QFN-20

  • Pin Count:

    20

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Conexant Systems Inc

  • Data Rate:

    2 Mbps

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.23SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    0.083 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    MODEM

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

CX93011-22Z Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CX93011-22Z is -40°C to 85°C, with a storage temperature range of -55°C to 125°C.
  • To configure the CX93011-22Z for optimal power consumption, set the power mode to 'Low Power Mode' (LPM) and adjust the clock frequency according to your application's requirements. Additionally, consider using the 'Power Down Mode' (PDM) when the device is not in use.
  • The CX93011-22Z supports a maximum data transfer rate of 480 Mbps in USB 2.0 mode and 5 Gbps in USB 3.0 mode.
  • Yes, the CX93011-22Z is suitable for audio applications, including audio codecs, audio interfaces, and audio processing. It supports audio sampling rates up to 192 kHz and 24-bit audio resolution.
  • Firmware updates for the CX93011-22Z can be implemented using the Conexant Systems Inc. provided firmware update tool or by using a custom firmware update mechanism. It is recommended to follow the manufacturer's guidelines and documentation for firmware updates.
