CX9628-AL footprint, schematic symbol and 3D model by COILCRAFT

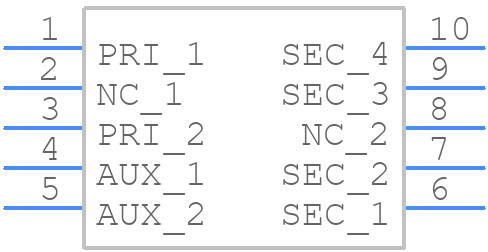

Symbol

click to zoom

PCB Footprints

CX9628-AL - COILCRAFT PCB footprint - Other - Other - CX9628-AL-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CX9628-AL
Part Number CX9628-AL
Manufacturer COILCRAFT
Pin Count 10
Part Category Transformer
Package Category Other
Footprint Name Other - CX9628-AL-1
Released Date Jan 10, 2023
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

CX9628-AL Details

Manufacturer Part Number:
CX9628-AL
Brand Name:
Coilcraft
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
6.15
Additional Feature:
LENGTH, WIDTH AND HEIGHT DIMENSION INCLUDE TERMINAL ALSO
Height:
12.7 mm
Input Voltage-Max:
57 V
Input Voltage-Min:
36 V
Length:
17.75 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
2
Number of Secondary Winding:
1
Output Voltage 1:
5 V
Power Rating:
12 W
Primary Inductance:
43.7 µH
Surface Mount:
YES
Transformer Type:
SMPS TRANSFORMER
Width:
13.46 mm

CX9628-AL Frequently Asked Questions (FAQs)

Coilcraft provides a recommended PCB land pattern in their application notes, which can be found on their website. The recommended land pattern is designed to ensure optimal performance and reliability of the inductor.
To minimize the impact of PCB layout and proximity to other components, it's recommended to follow Coilcraft's guidelines for PCB layout and component placement. This includes keeping the inductor away from high-current carrying traces, avoiding parallel plate capacitors, and using a solid ground plane under the inductor.
While the datasheet specifies a temperature range of -40°C to +125°C, it's essential to note that the inductor's performance may degrade at higher temperatures. Coilcraft recommends derating the inductor's current rating at higher temperatures to ensure reliable operation.
While the CX9628-AL is a robust component, it's still susceptible to mechanical stress. Coilcraft recommends following their guidelines for mechanical stress testing and ensuring that the PCB is properly secured and supported to minimize the risk of mechanical failure.
Coilcraft provides EMI shielding options for their inductors, including the CX9628-AL. Engineers should consult with Coilcraft's application engineers to determine the best EMI shielding solution for their specific application.

Trust Checks

Community Provided

System Verified

Community Approved

CX9628-AL Overview

Use the download button to access the CX9628-AL schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like CX962, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
