CXA1330S - Sony

CXA1330S Details

• Manufacturer Part Number:

  CXA1330S

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

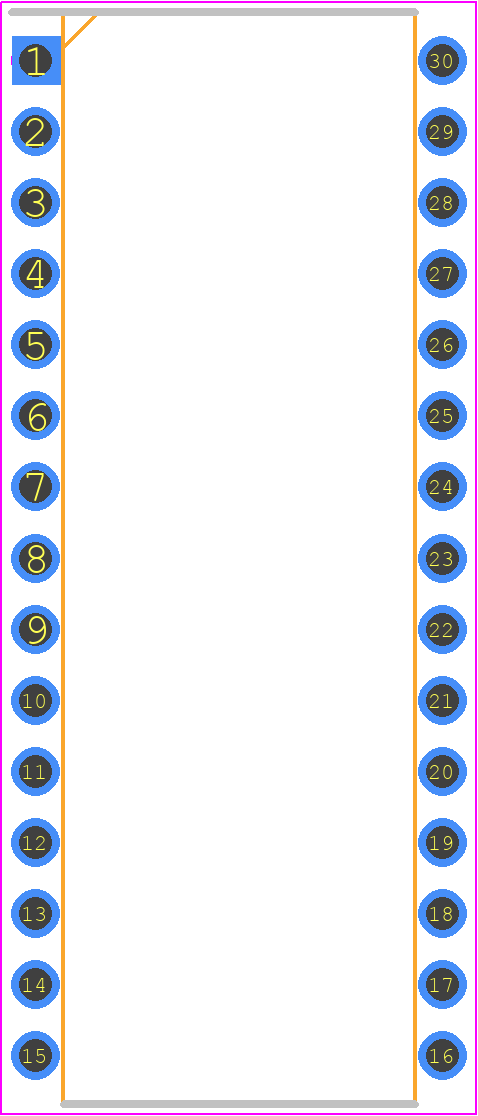

• Package Description:

  0.400 INCH, PLASTIC, SDIP-30

• Pin Count:

  30

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Sony Semiconductor

• YTEOL:

  0

• Consumer IC Type:

  DOLBY NOISE REDUCTION IC

• Dolby Level-Nom:

  388 mV

• Dolby Type:

  B AND C

• Harmonic Distortion:

  0.06%

• JESD-30 Code:

  R-PDIP-T30

• JESD-609 Code:

  e0

• Length:

  26.9 mm

• Number of Channels:

  2

• Number of Functions:

  1

• Number of Terminals:

  30

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SDIP

• Package Equivalence Code:

  SDIP30,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE, SHRINK PITCH

• Playback/Record Mode:

  PLAYBACK AND RECORD

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.1 mm

• Supply Current-Max:

  18 mA

• Supply Voltage-Max (Vsup):

  16 V

• Supply Voltage-Min (Vsup):

  11.5 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.778 mm

• Terminal Position:

  DUAL

• Width:

  10.16 mm
