CXA1538M - Sony

Description: STEREO/AM RADIO

Download CXA1538M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

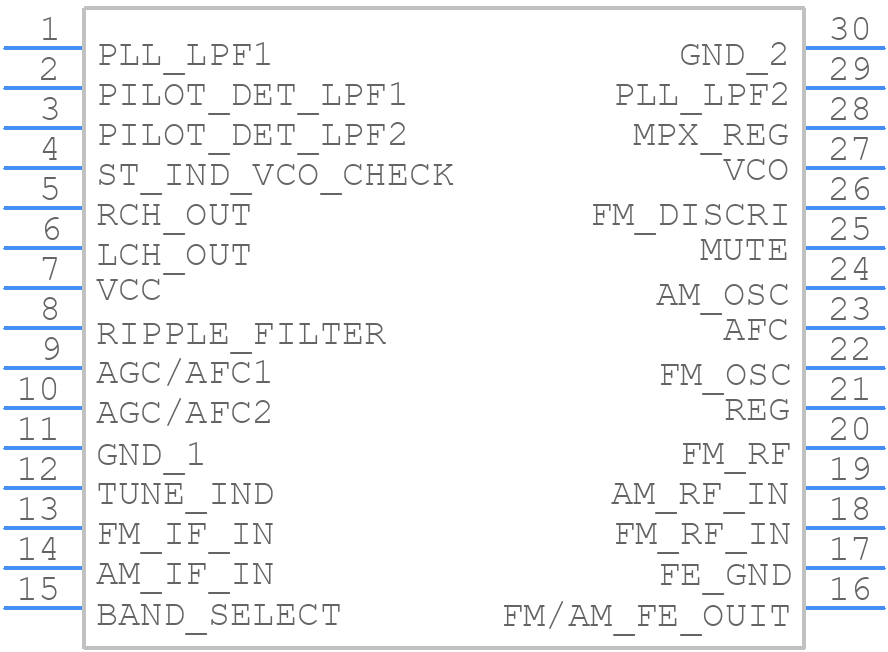

CXA1538M - Sony - PCB symbol
click to zoom
PCB Footprints
CXA1538M - Sony PCB footprint - Small Outline Packages - Small Outline Packages - 30PIN SOP(PLASTIC)
click to zoom

CXA1538M Details

  • Manufacturer Part Number:

    CXA1538M

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    0.375 INCH, PLASTIC, SOP-30

  • Pin Count:

    30

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Sony Semiconductor

  • YTEOL:

    0

  • Consumer IC Type:

    AUDIO SINGLE CHIP RECEIVER

  • Demodulation Type:

    AM/FM

  • Harmonic Distortion:

    0.6%

  • JESD-30 Code:

    R-PDSO-G30

  • JESD-609 Code:

    e0

  • Length:

    18.8 mm

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -10 °C

  • Output Voltage-Nom (AM):

    77.5 mV

  • Output Voltage-Nom (FM):

    77.5 mV

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP30,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.7 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max (Vsup):

    9 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.6 mm

CXA1538M Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the CXA1538M is 4.5V to 5.5V, with a typical voltage of 5V.
  • To ensure stable operation in high-temperature environments, it's recommended to use a heat sink and ensure good thermal conductivity between the IC and the heat sink. Additionally, reduce the power supply voltage and operating frequency to minimize heat generation.
  • The maximum allowable power dissipation for the CXA1538M is 1.5W, and it's recommended to keep the power dissipation below 1W for reliable operation.
  • To optimize the CXA1538M for low-power consumption, use a low-power mode, reduce the operating frequency, and minimize the voltage supply. Additionally, use a high-impedance load and optimize the output stage for minimum power consumption.
  • For optimal performance, it's recommended to use a symmetrical layout, keep the power supply lines short and wide, and use a ground plane to minimize noise and electromagnetic interference (EMI).
