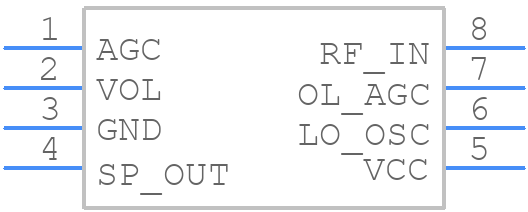

CXA1600P - Sony

CXA1600P Details

• Manufacturer Part Number:

  CXA1600P

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  0.300 INCH, PLASTIC, DIP-8

• Pin Count:

  8

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Sony Semiconductor

• YTEOL:

  0

• Consumer IC Type:

  AUDIO SINGLE CHIP RECEIVER

• Demodulation Type:

  AM

• JESD-30 Code:

  R-PDIP-T8

• Length:

  9.4 mm

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -20 °C

• Output Voltage-Nom (AM):

  1280 mV

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP8,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.1 mm

• Supply Current-Max:

  10 mA

• Supply Voltage-Max (Vsup):

  4.5 V

• Supply Voltage-Min (Vsup):

  1.8 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
