CXA1619BS - Sony

CXA1619BS Details

• Manufacturer Part Number:

  CXA1619BS

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

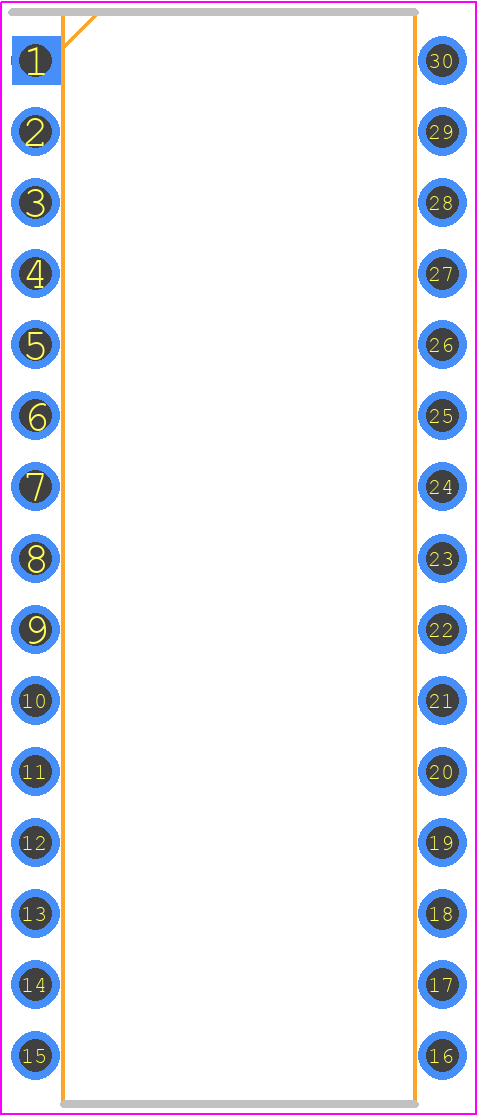

• Package Description:

  0.400 INCH, PLASTIC, SDIP-30

• Pin Count:

  30

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Sony Semiconductor

• YTEOL:

  0

• Consumer IC Type:

  AUDIO SINGLE CHIP RECEIVER

• Demodulation Type:

  AM/FM

• Harmonic Distortion:

  0.9%

• JESD-30 Code:

  R-PDIP-T30

• Length:

  26.9 mm

• Number of Functions:

  1

• Number of Terminals:

  30

• Operating Temperature-Max:

  60 °C

• Operating Temperature-Min:

  -10 °C

• Output Voltage-Nom (AM):

  77.5 mV

• Output Voltage-Nom (FM):

  77.5 mV

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SDIP

• Package Equivalence Code:

  SDIP30,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE, SHRINK PITCH

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.1 mm

• Supply Current-Max:

  14 mA

• Supply Voltage-Max (Vsup):

  8.5 V

• Supply Voltage-Min (Vsup):

  2 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.778 mm

• Terminal Position:

  DUAL

• Width:

  10.16 mm
