CXD3400N - Sony

Description: 6-Channel CCD Vertical Clock Driver, SSOP-20

Download CXD3400N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

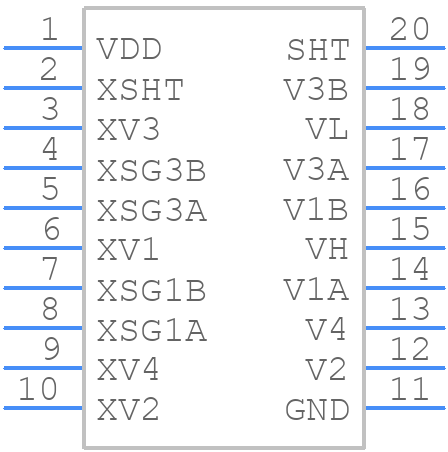

CXD3400N - Sony - PCB symbol
click to zoom
PCB Footprints
CXD3400N - Sony PCB footprint - Small Outline Packages - Small Outline Packages - 20PIN SSOP
click to zoom
3D Models
CXD3400N - Sony - 3D model - Small Outline Packages - 20PIN SSOP
click to zoom

CXD3400N Details

  • Manufacturer Part Number:

    CXD3400N

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    PLASTIC, SSOP-20

  • Pin Count:

    20

  • Country Of Origin:

    Japan

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Sony Semiconductor

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Logic IC Type:

    LOGIC CIRCUIT

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    4.4 mm

CXD3400N Frequently Asked Questions (FAQs)

  • Sony provides a reference design guide for the CXD3400N, which includes recommendations for PCB layout, thermal design, and component placement. It's essential to follow these guidelines to ensure optimal performance, thermal management, and electromagnetic compatibility.
  • The CXD3400N is a highly configurable device. Sony provides a software development kit (SDK) that includes APIs and documentation for configuring the device for various video formats and resolutions. Engineers can use the SDK to develop custom firmware and software applications.
  • While the datasheet provides some power consumption and thermal characteristics, Sony also provides a detailed power consumption and thermal design guide that includes information on power modes, current consumption, and thermal management. Engineers should consult this guide for specific design requirements.
  • The CXD3400N has a built-in image processing engine, and Sony provides a software development kit (SDK) that includes APIs and documentation for implementing image processing and correction algorithms. Engineers can use the SDK to develop custom firmware and software applications.
  • While the datasheet provides some operating conditions and storage requirements, Sony also provides a detailed reliability handbook that includes information on recommended operating conditions, storage requirements, and handling precautions. Engineers should consult this handbook for specific design requirements.
