CY14B101KA-SP45XI - Infineon

Description: NVRAM 1Mb 3V 45ns 128K x 8 nvSRAM

Download CY14B101KA-SP45XI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

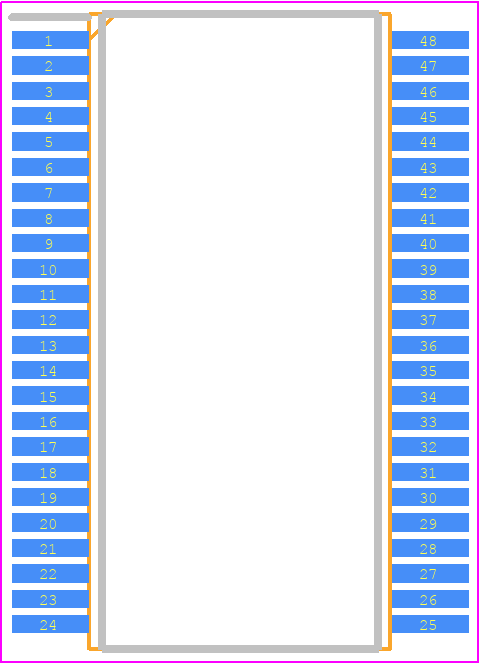

CY14B101KA-SP45XI - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 48-pin SSOP (300mils)_inches
click to zoom
3D Models
CY14B101KA-SP45XI - Infineon  - 3D model - Small Outline Packages - 48-pin SSOP (300mils)_inches
click to zoom

CY14B101KA-SP45XI Details

  • Manufacturer Part Number:

    CY14B101KA-SP45XI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Access Time-Max:

    45 ns

  • Alternate Memory Width:

    8

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e4

  • Length:

    15.875 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    NON-VOLATILE SRAM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Words:

    65536 words

  • Number of Words Code:

    64000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64KX16

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP48,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.794 mm

  • Standby Current-Max:

    0.005 A

  • Supply Current-Max:

    0.052 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    7.5057 mm

CY14B101KA-SP45XI Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for CY14B101KA-SP45XI is 2.7V to 3.6V.
  • It is recommended to follow a controlled power-up and power-down sequence to prevent unwanted writes or data corruption. A slow power ramp-up (typically 10 ms/V) and a power-down sequence with a delay of at least 10 ms between VCC and VIO are recommended.
  • The maximum clock frequency supported by CY14B101KA-SP45XI is 108 MHz.
  • To ensure data integrity and prevent data corruption during power failures, it is recommended to use a voltage supervisor or a power-fail detector to detect power failures and prevent writes to the device during these events.
  • The typical standby current consumption of CY14B101KA-SP45XI is around 10 μA at 3.3V and 25°C.
