A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a 0.1uF decoupling capacitor between VCC and GND near the device.
Use a voltage supervisor or a power-on reset circuit to ensure that the device is fully powered up before accessing the memory. Also, use a capacitor to filter out power noise and ensure a clean power-up sequence.
The CY14B101LA-SP45XI is rated for operation from -40°C to +85°C. However, it's recommended to operate within a narrower range (e.g., 0°C to 70°C) for optimal performance and reliability.
The CY14B101LA-SP45XI is not designed for use in radiation-intensive environments. If your application requires radiation hardness, consider using a different device or consulting with Infineon's radiation-hardened products.
Implement error detection and correction mechanisms, such as CRC checks and retry mechanisms, to handle errors during write operations. Also, ensure that the device is properly powered and that the write cycle is completed before accessing the memory.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY14B101LA-SP45XI Overview

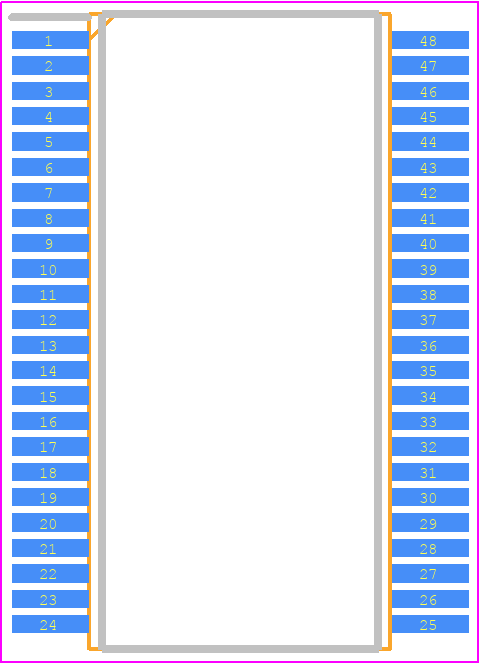

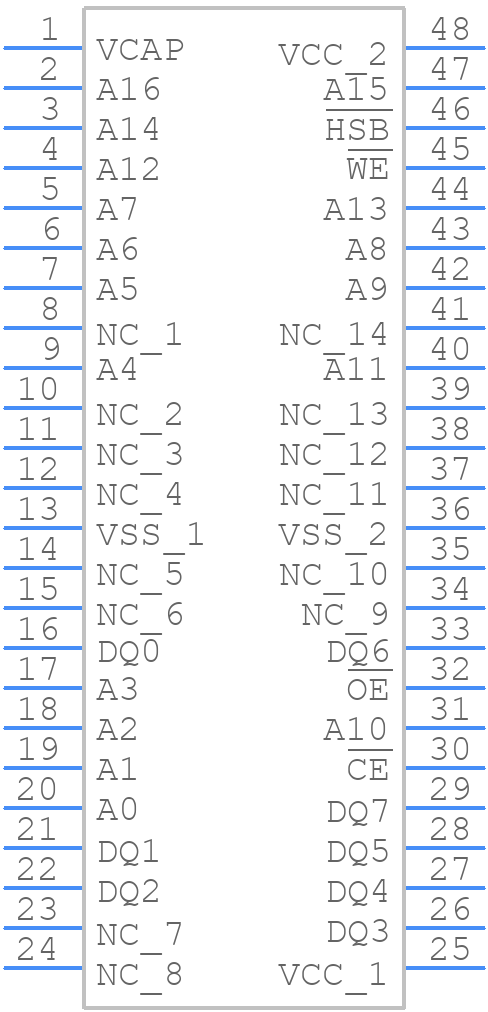

Use the download button to access the CY14B101LA-SP45XI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY14B,
or try a keyword search, such as SRAMs
