CY14B101Q2A-SXI - Infineon

Description: NVRAM NVSRAM Serial-SPI 1Mbit 3.3V 8-Pin SOIC Tube

Download CY14B101Q2A-SXI Model

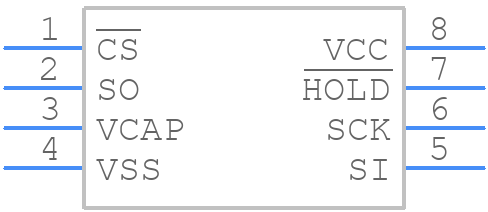

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY14B101Q2A-SXI - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 8-PIN SOIC (150 mils) 51-85066
click to zoom
3D Models
CY14B101Q2A-SXI - Infineon  - 3D model - Small Outline Packages - 8-PIN SOIC (150 mils) 51-85066
click to zoom

CY14B101Q2A-SXI Details

  • Manufacturer Part Number:

    CY14B101Q2A-SXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    4.75

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.889 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    NON-VOLATILE SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.727 mm

  • Standby Current-Max:

    0.00015 A

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    3.8985 mm

CY14B101Q2A-SXI Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a decoupling capacitor (e.g., 100nF) close to the VCC pin.
  • Use a voltage supervisor (e.g., CY14B101Q2A-SXI's built-in VCC monitor) to ensure that the device is not accessed during power-up and power-down. Add a capacitor (e.g., 10uF) between VCC and VSS to filter out power noise.
  • The maximum operating frequency is 108 MHz. However, the actual frequency may vary depending on the system design and environmental conditions.
  • Tie the Hold pin to VCC or use a pull-up resistor to prevent accidental writes. Connect the WP pin to VCC or use a pull-up resistor to enable write protection. Use a capacitor (e.g., 10nF) between the WP pin and VSS to filter out noise.
  • The recommended storage temperature range is -40°C to +125°C. Storing the device outside this range may affect its reliability and performance.
