CY14B116M-ZSP25XIT - Infineon

Description: NVRAM Non Volatile SRAMs

Download CY14B116M-ZSP25XIT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

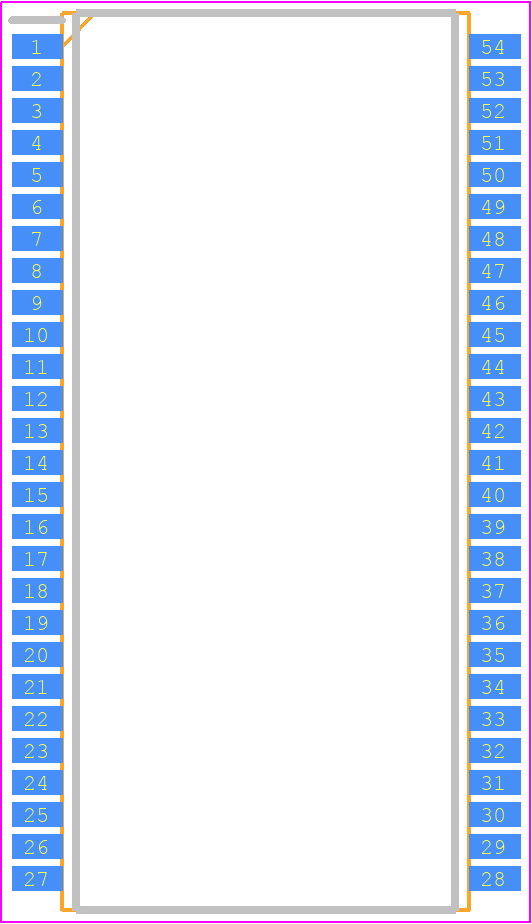

CY14B116M-ZSP25XIT - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 4. 54-Pin TSOP II Package Outline (51-85160
click to zoom
3D Models
CY14B116M-ZSP25XIT - Infineon  - 3D model - Small Outline Packages - 4. 54-Pin TSOP II Package Outline (51-85160
click to zoom

CY14B116M-ZSP25XIT Details

  • Manufacturer Part Number:

    CY14B116M-ZSP25XIT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.b.2.a

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Access Time-Max:

    25 ns

  • JESD-30 Code:

    R-PDSO-G54

  • JESD-609 Code:

    e3

  • Memory Density:

    16777216 bit

  • Memory IC Type:

    NON-VOLATILE SRAM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    54

  • Number of Words:

    1048576 words

  • Number of Words Code:

    1000000

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1MX16

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP

  • Package Equivalence Code:

    TSOP54,.46,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Standby Current-Max:

    0.00075 A

  • Supply Current-Max:

    0.095 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

CY14B116M-ZSP25XIT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for CY14B116M-ZSP25XIT is 2.7V to 3.6V.
  • It is recommended to follow a controlled power-up and power-down sequence to prevent unwanted writes or data corruption. A slow power ramp-up (typically 10ms) and power-down (typically 10ms) is recommended.
  • The maximum clock frequency supported by CY14B116M-ZSP25XIT is 108 MHz.
  • To ensure data integrity during power failures or brownouts, it is recommended to use a voltage supervisor or a power-on reset (POR) circuit to detect power failures and prevent writes to the device during these events.
  • The typical standby current consumption of CY14B116M-ZSP25XIT is around 10 μA.
