CY14B256LA-SP25XI - Infineon

Description: Cypress Semiconductor CY14B256LA-SP25XI SRAM Memory, 256kbit, 2.7 → 3.6 V, 25ns 48-Pin SSOP

Download CY14B256LA-SP25XI Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this CY14B256LA-SP25XI model

Email notifications will be applied after download.

Send part feedback

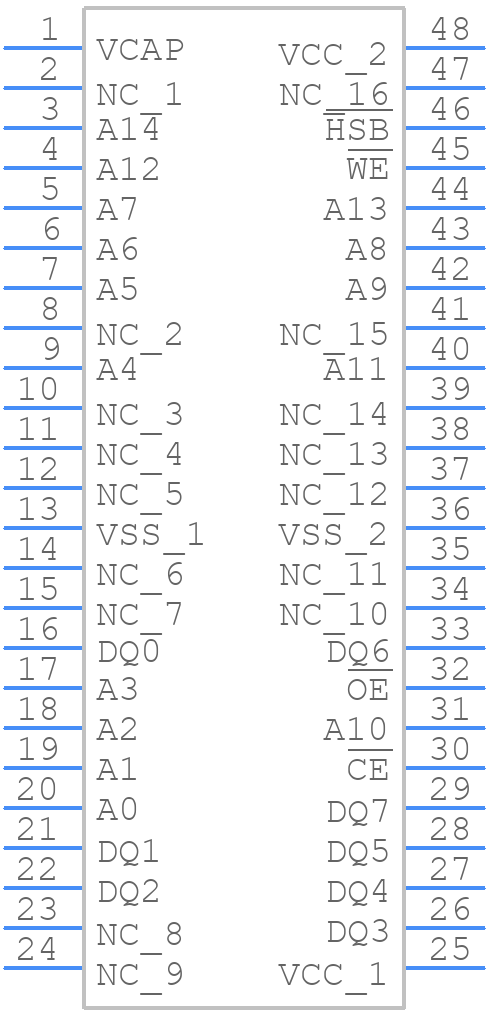

Symbol

CY14B256LA-SP25XI - Infineon - PCB symbol

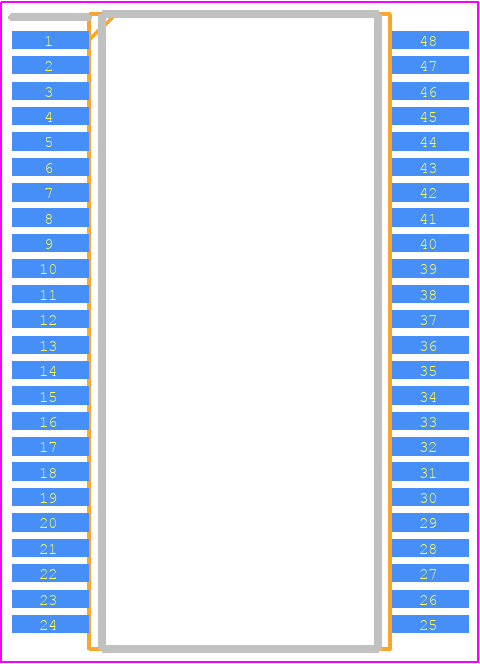

PCB Footprints

CY14B256LA-SP25XI - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 48-pin SSOP (300mils)

3D Models

CY14B256LA-SP25XI - Infineon - 3D model - Small Outline Packages - 48-pin SSOP (300mils)

Datasheet Download Datasheet
Stock & Prices Price & Stock for CY14B256LA-SP25XI
Part Number CY14B256LA-SP25XI
Manufacturer Infineon
Pin Count 48
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 48-pin SSOP (300mils)
Released Date Mar 24, 2022
Last Modified Date Jan 25, 2024 9:25 PM UTC
Pinout / Pin List Click Here (Member Only)

CY14B256LA-SP25XI Details

Manufacturer Part Number:
CY14B256LA-SP25XI
Manufacturer:
Infineon Technologies AG

Trust Checks

Community Provided

System Verified

Community Approved

CY14B256LA-SP25XI Overview

Use the download button to access the CY14B256LA-SP25XI schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CY14B, or try a keyword search, such as SRAMs
