CY14V116N-BZ30XI - Infineon

Description: NVRAM Non Volatile SRAMs

Download CY14V116N-BZ30XI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

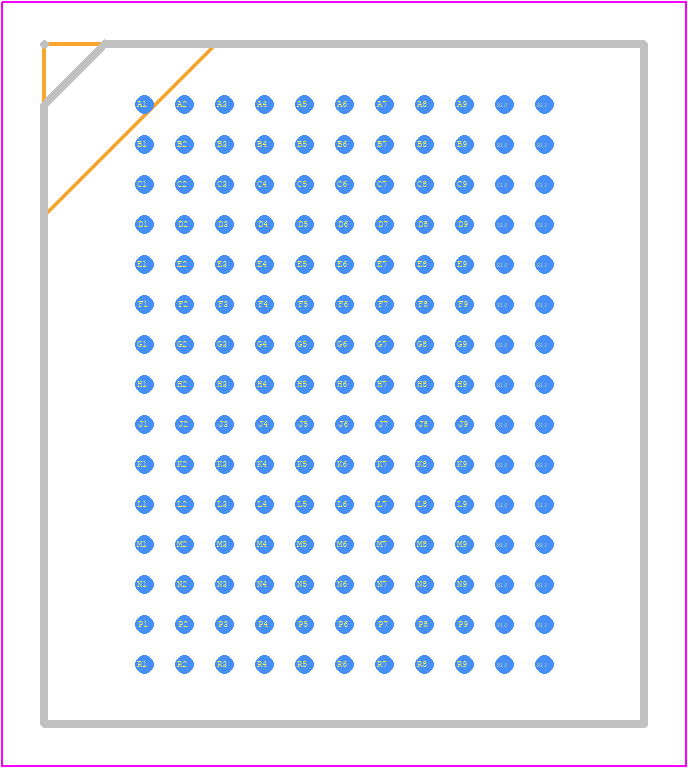

CY14V116N-BZ30XI - Infineon PCB footprint - BGA - BGA - 165-ball FBGA (15 mm × 17 mm × 1.40 mm)
click to zoom
3D Models
CY14V116N-BZ30XI - Infineon  - 3D model - BGA - 165-ball FBGA (15 mm × 17 mm × 1.40 mm)
click to zoom

CY14V116N-BZ30XI Details

  • Manufacturer Part Number:

    CY14V116N-BZ30XI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    3A991.b.2.a

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Access Time-Max:

    30 ns

  • JESD-30 Code:

    R-PBGA-B165

  • JESD-609 Code:

    e1

  • Length:

    17 mm

  • Memory Density:

    16777216 bit

  • Memory IC Type:

    NON-VOLATILE SRAM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    165

  • Number of Words:

    1048576 words

  • Number of Words Code:

    1000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1MX16

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.4 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    15 mm

CY14V116N-BZ30XI Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the CY14V116N-BZ30XI is 2.7V to 3.6V.
  • To ensure data integrity, use a pull-up resistor on the SCL line, and ensure that the clock frequency is within the recommended range. Also, use a capacitor on the VCC pin to filter out noise.
  • The maximum clock frequency supported by the CY14V116N-BZ30XI is 400 kHz.
  • During power-up, ensure that the VCC pin is powered up before the SCL pin. During power-down, ensure that the SCL pin is powered down before the VCC pin.
  • The maximum storage temperature range for the CY14V116N-BZ30XI is -65°C to 150°C.
