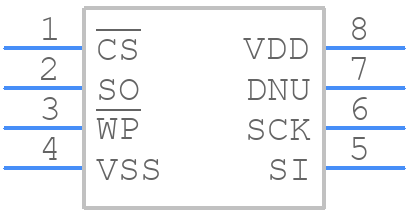

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

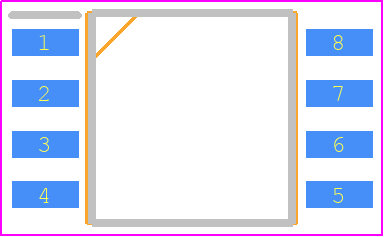

PCB Footprints
CY15B102QN-50SXE - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - CY15B102QN-50SXE
click to zoom
3D Models
CY15B102QN-50SXE - Infineon  - 3D model - Small Outline Packages - CY15B102QN-50SXE
click to zoom

CY15B102QN-50SXE Details

  • Manufacturer Part Number:

    CY15B102QN-50SXE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Additional Feature:

    2kv ESD available

  • Clock Frequency-Max (fCLK):

    50 MHz

  • Data Retention Time-Min:

    11

  • Endurance:

    10000000000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5.28 mm

  • Memory Density:

    2097152 bit

  • Memory IC Type:

    FRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    262144 words

  • Number of Words Code:

    256000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.03 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00035 A

  • Standby Voltage-Min:

    1.8 V

  • Supply Current-Max:

    0.008 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.23 mm

  • Write Protection:

    HARDWARE/SOFTWARE

CY15B102QN-50SXE Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the CY15B102QN-50SXE is 2.7V to 3.6V.
  • The power-up and power-down sequences for the CY15B102QN-50SXE should be handled according to the datasheet recommendations to prevent damage to the device.
  • The maximum clock frequency supported by the CY15B102QN-50SXE is 50 MHz.
  • To implement a reliable write operation for the CY15B102QN-50SXE, ensure that the write cycle is completed within the specified time, and the write enable (WE) signal is asserted correctly.
  • The WP (Write Protect) pin on the CY15B102QN-50SXE is used to prevent accidental writes to the device. When WP is low, the device is in write-protect mode, and when WP is high, the device is in normal operation mode.
