CY15B104QSN-108SXI - Infineon

Description: F-RAM 4Mb F-RAM 108 MHz QSPI

Download CY15B104QSN-108SXI Model

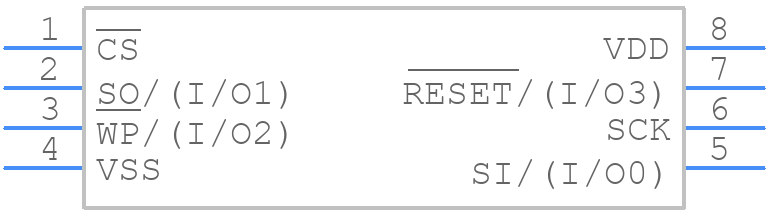

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

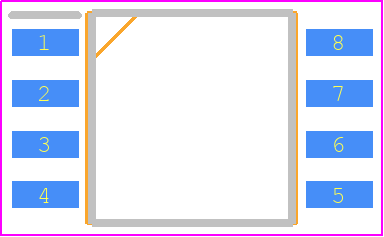

CY15B104QSN-108SXI - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 8-pin SOIC (208 Mils) 001-85261
click to zoom
3D Models
CY15B104QSN-108SXI - Infineon  - 3D model - Small Outline Packages - 8-pin SOIC (208 Mils) 001-85261
click to zoom

CY15B104QSN-108SXI Details

  • Manufacturer Part Number:

    CY15B104QSN-108SXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Additional Feature:

    2kv ESD available

  • Clock Frequency-Max (fCLK):

    108 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    100000000000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5.28 mm

  • Memory Density:

    4194304 bit

  • Memory IC Type:

    FRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    524288 words

  • Number of Words Code:

    512000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.03 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00035 A

  • Standby Voltage-Min:

    1.8 V

  • Supply Current-Max:

    0.021 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.23 mm

  • Write Protection:

    HARDWARE/SOFTWARE

CY15B104QSN-108SXI Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the CY15B104QSN-108SXI is 2.7V to 3.6V.
  • The power-up and power-down sequences for the CY15B104QSN-108SXI should be handled according to the datasheet recommendations, ensuring that the VCC supply is stable before accessing the device.
  • The CY15B104QSN-108SXI supports a maximum clock frequency of 108 MHz.
  • The timing for the CS and CLK signals should be implemented according to the datasheet specifications, ensuring that the CS signal is asserted before the CLK signal and de-asserted after the CLK signal.
  • The WP pin is used to enable or disable the write protection feature. When the WP pin is tied to VCC, the device is in write-protect mode, and when it is tied to GND, the device is in normal operation mode.
