CY15B108QN-50BKXQ - Infineon

Description: 8Mb 3.3V Industrial(Q) 50MHz SPI EXCELON™ F-RAM in 24-ball FBGA

Download CY15B108QN-50BKXQ Model

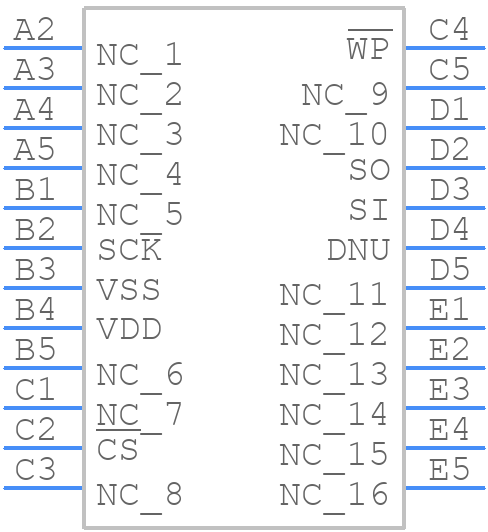

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY15B108QN-50BKXQ - Infineon PCB footprint - BGA - BGA - 24L FBGA 8 x 6 x 1.2 mm BK24A package outline
click to zoom
3D Models
CY15B108QN-50BKXQ - Infineon  - 3D model - BGA - 24L FBGA 8 x 6 x 1.2 mm BK24A package outline
click to zoom

CY15B108QN-50BKXQ Details

  • Manufacturer Part Number:

    CY15B108QN-50BKXQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Additional Feature:

    2kv ESD available

  • Clock Frequency-Max (fCLK):

    50 MHz

  • Data Retention Time-Min:

    1

  • Endurance:

    100000000000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    8 mm

  • Memory Density:

    8388608 bit

  • Memory IC Type:

    FRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    1048576 words

  • Number of Words Code:

    1000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA24,5X5,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.000305 A

  • Standby Voltage-Min:

    1.8 V

  • Supply Current-Max:

    0.008 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

CY15B108QN-50BKXQ Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for CY15B108QN-50BKXQ is -40°C to 125°C.
  • It is recommended to follow a controlled power-up and power-down sequence to prevent damage to the device. A slow ramp-up of the power supply voltage (VCC) is recommended, and the device should be powered down in the reverse order of power-up.
  • The maximum allowed voltage on the I/O pins is VCC + 0.5V, but it should not exceed 4.6V.
  • To ensure data retention during power-down, the VCC supply voltage should be reduced to 0V in a controlled manner, and the device should be in a standby or sleep mode before power-down.
  • The recommended storage temperature range for CY15B108QN-50BKXQ is -65°C to 150°C.
