CY15B108QSN-108BKXI - Infineon

Description: Ferroelectric RAM, 1M x 8bit, 108 MHz, 1.8 V to 3.6 Vin, QSPI, FBGA-24, -40 °C to 85 °C

Download CY15B108QSN-108BKXI Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this CY15B108QSN-108BKXI model

Email notifications will be applied after download.

Send part feedback

Symbol

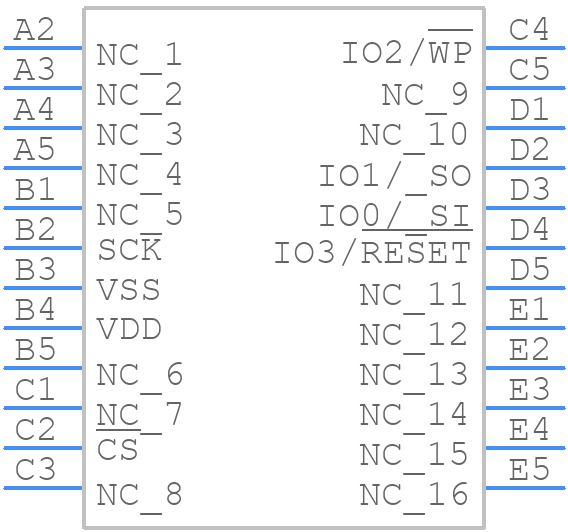

CY15B108QSN-108BKXI - Infineon - PCB symbol

PCB Footprints

CY15B108QSN-108BKXI - Infineon PCB footprint - BGA - BGA - PG-BGA-24-800

3D Models

CY15B108QSN-108BKXI - Infineon - 3D model - BGA - PG-BGA-24-800

Datasheet Download Datasheet
Stock & Prices Price & Stock for CY15B108QSN-108BKXI
Part Number CY15B108QSN-108BKXI
Manufacturer Infineon
Pin Count 24
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - PG-BGA-24-800
Released Date May 16, 2026
Last Modified Date May 16, 2026 2:40 AM UTC
Pinout / Pin List Click Here (Member Only)

CY15B108QSN-108BKXI Details

Manufacturer Part Number:
CY15B108QSN-108BKXI
Manufacturer:
Infineon Technologies AG

Trust Checks

Community Provided

System Verified

Community Approved

CY15B108QSN-108BKXI Overview

Use the download button to access the CY15B108QSN-108BKXI schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CY15B, or try a keyword search, such as FRAMs
