CY15B116QN-40BKXI - Infineon

Description: CY15B116QN-40BKXI

Download CY15B116QN-40BKXI Model

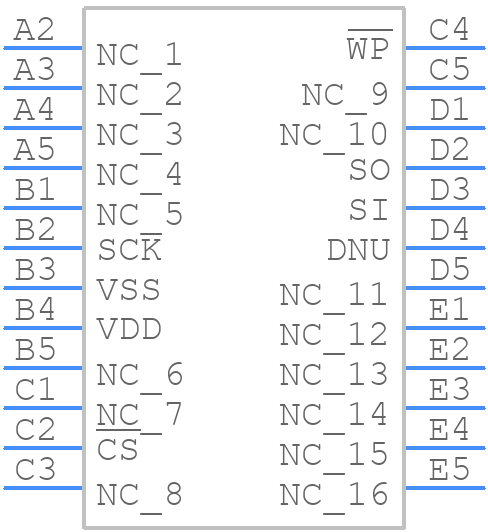

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY15B116QN-40BKXI - Infineon PCB footprint - BGA - BGA - 24L FBGA 8  6  1.2 mm BK24A package outline, 001-97209
click to zoom
3D Models
CY15B116QN-40BKXI - Infineon  - 3D model - BGA - 24L FBGA 8  6  1.2 mm BK24A package outline, 001-97209
click to zoom

CY15B116QN-40BKXI Details

  • Manufacturer Part Number:

    CY15B116QN-40BKXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Additional Feature:

    DATA RETENTION TIME @ 85 DEGREE CENTIGRADE; 2KV ESD AVAILABLE

  • Clock Frequency-Max (fCLK):

    40 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    1000000000000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    8 mm

  • Memory Density:

    16777216 bit

  • Memory IC Type:

    FRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    2097152 words

  • Number of Words Code:

    2000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA24,5X5,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.0002535 A

  • Standby Voltage-Min:

    1.8 V

  • Supply Current-Max:

    0.0043 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

CY15B116QN-40BKXI Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CY15B116QN-40BKXI is -40°C to 125°C.
  • It is recommended to follow the power-up and power-down sequencing guidelines provided in the datasheet, ensuring that the VCC supply is stable before applying clock and input signals, and that the device is properly reset during power-up.
  • The maximum clock frequency supported by the CY15B116QN-40BKXI is 133 MHz.
  • The CY15B116QN-40BKXI's QDR II+ interface requires differential termination, and it is recommended to use a 100-ohm differential termination resistor (RTT) and a 50-ohm single-ended termination resistor (RT) to ensure signal integrity.
