CY15B116QSN-108BKXI footprint, schematic symbol and 3D model by Infineon

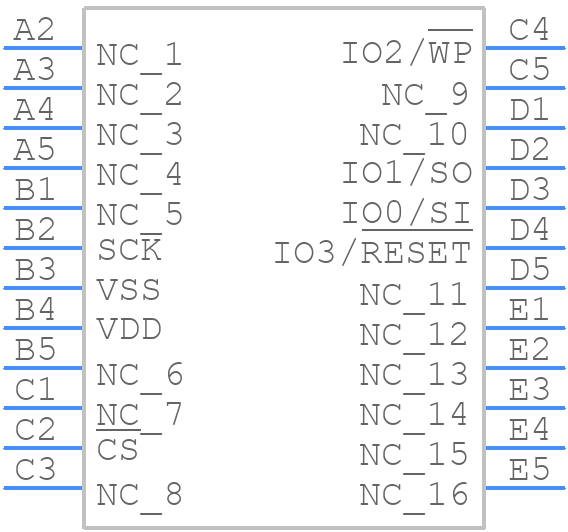

Symbol

PCB Footprints

3D Models

CY15B116QSN-108BKXI Details

Manufacturer Part Number:
CY15B116QSN-108BKXI
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
FBGA-24
Country Of Origin:
Thailand
Manufacturer:
Infineon Technologies AG
YTEOL:
8
Additional Feature:
DATA RETENTION TIME @ 85 DEGREE CENTIGRADE; 2KV ESD AVAILABLE
Clock Frequency-Max (fCLK):
108 MHz
Data Retention Time-Min:
10
Endurance:
100000000000000 Write/Erase Cycles
JESD-30 Code:
R-PBGA-B24
JESD-609 Code:
e1
Length:
8 mm
Memory Density:
16777216 bit
Memory IC Type:
FRAM
Memory Width:
8
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
24
Number of Words:
2097152 words
Number of Words Code:
2000000
Operating Mode:
SYNCHRONOUS
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Organization:
2MX8
Package Body Material:
PLASTIC/EPOXY
Package Code:
TBGA
Package Equivalence Code:
BGA24,5X5,40
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY, THIN PROFILE
Parallel/Serial:
SERIAL
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Serial Bus Type:
SPI
Standby Current-Max:
0.00056 A
Standby Voltage-Min:
1.8 V
Supply Current-Max:
0.03 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
1.8 V
Supply Voltage-Nom (Vsup):
3 V
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
1 mm
Terminal Position:
BOTTOM
Width:
6 mm
Write Protection:
HARDWARE/SOFTWARE

Infineon provides a recommended PCB layout in the application note AN2013-01, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The CY15B116QSN-108BKXI has a thermal pad on the bottom side of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat efficiently. Additionally, ensure good airflow around the device and consider using a heat sink if the operating conditions exceed the recommended temperature range.
The CY15B116QSN-108BKXI is specified to operate up to 108 MHz, but the actual operating frequency may be limited by the system design, PCB layout, and signal integrity. It's essential to perform signal integrity analysis and simulation to ensure reliable operation at the desired frequency.
To ensure reliable data retention, follow the recommended storage conditions, handle the device with care to avoid physical stress, and use a secure erase procedure before reprogramming the device. Additionally, consider implementing error correction mechanisms and data redundancy in the system design.
The CY15B116QSN-108BKXI requires a single 3.3V power supply (VCC) with a recommended operating range of 3.0V to 3.6V. Ensure a stable power supply with minimal noise and ripple to prevent device malfunction or data corruption.
