CY15B204QN-40SXET - Infineon

Description: • 4-Mb ferroelectric random access memory (F-RAM) logically organized as 512K × 8 - Virtually unlimited endurance of 1000 trillion (1013) read/write cycles - 121-year data retention (see “Data retention and endurance” on page 25) - Infineon instant non-volatile write technology - Advanced high-reliability ferroelectric process • Fast serial peripheral interface (SPI) - Up to 40 MHz frequency - Supports SPI Mode 0 (0, 0) and Mode 3 (1, 1) • Sophisticated write protection scheme - Hardware protection

Download CY15B204QN-40SXET Model

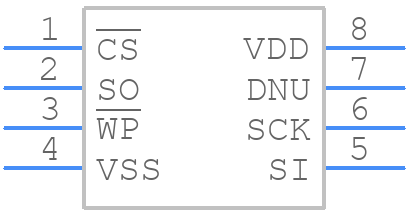

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

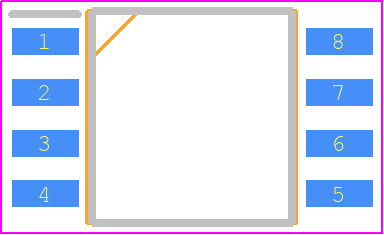

CY15B204QN-40SXET - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 8-pin SOIC (208 Mils) package outline, 001-85261
click to zoom
3D Models
CY15B204QN-40SXET - Infineon  - 3D model - Small Outline Packages - 8-pin SOIC (208 Mils) package outline, 001-85261
click to zoom

CY15B204QN-40SXET Details

  • Manufacturer Part Number:

    CY15B204QN-40SXET

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Memory IC Type:

    FRAM

  • Moisture Sensitivity Level:

    3

CY15B204QN-40SXET Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for CY15B204QN-40SXET is 2.7V to 3.6V.
  • It's recommended to follow a controlled power-up sequence, ensuring that VCC reaches a minimum of 2.7V before applying any input signals. During power-down, ensure that all inputs are at a valid logic level before VCC falls below 2.7V.
  • The maximum clock frequency supported by CY15B204QN-40SXET is 40 MHz.
  • A reliable reset mechanism can be implemented by connecting the RESET pin to a power-on reset circuit or a dedicated reset generator. Ensure that the reset signal is active low and has a duration of at least 10 ns.
  • The device has a maximum junction temperature (TJ) of 150°C. Ensure proper thermal management by providing adequate heat dissipation, using thermal pads or heat sinks if necessary, and avoiding high ambient temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY15B204QN-40SXET Overview

Use the download button to access the CY15B204QN-40SXET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY15B, or try a keyword search, such as FRAMs
