Part Image

CY15V116QSN-108BKXI - Infineon

Description: FRAM (Ferroelectric RAM) Memory IC 16Mbit SPI - Quad I/O, QPI 108 MHz 6.7 ns 24-FBGA (6x8)

Download CY15V116QSN-108BKXI Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this CY15V116QSN-108BKXI model

Email notifications will be applied after download.

Send part feedback

Symbol

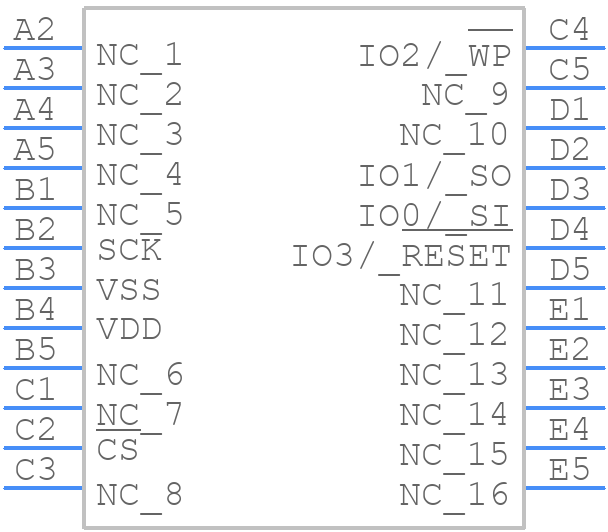

CY15V116QSN-108BKXI - Infineon - PCB symbol

PCB Footprints

CY15V116QSN-108BKXI - Infineon PCB footprint - BGA - BGA - 24L FBGA 8 × 6 × 1.2 mm BK24A

3D Models

CY15V116QSN-108BKXI - Infineon - 3D model - BGA - 24L FBGA 8 × 6 × 1.2 mm BK24A

Datasheet Download Datasheet
Stock & Prices Price & Stock for CY15V116QSN-108BKXI
Part Number CY15V116QSN-108BKXI
Manufacturer Infineon
Pin Count 24
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 24L FBGA 8 × 6 × 1.2 mm BK24A
Released Date May 31, 2024
Last Modified Date May 31, 2024 4:32 AM UTC
Pinout / Pin List Click Here (Member Only)

CY15V116QSN-108BKXI Details

Manufacturer Part Number:
CY15V116QSN-108BKXI
Manufacturer:
Infineon Technologies AG

Trust Checks

Community Provided

System Verified

Community Approved

CY15V116QSN-108BKXI Overview

Use the download button to access the CY15V116QSN-108BKXI schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CY15V, or try a keyword search, such as FRAMs
