CY2-283+ - Mini-Circuits

Description: MMIC Frequency Multiplier

Download CY2-283+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

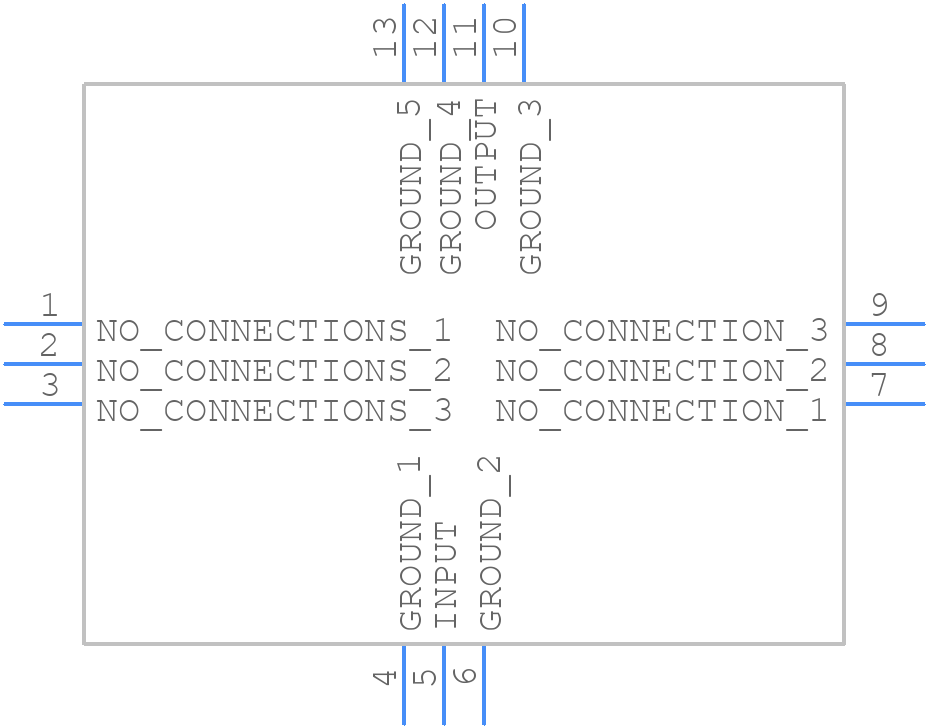

CY2-283+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DQ1225_2021
click to zoom
3D Models
CY2-283+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - DQ1225_2021
click to zoom

CY2-283+ Details

  • Manufacturer Part Number:

    CY2-283+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2017-12-26

  • Manufacturer:

    Mini-Circuits

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    22.5 dB

  • Input Power-Max (CW):

    18 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    28000 MHz

  • Operating Frequency-Min:

    7000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • RF/Microwave Device Type:

    FREQUENCY DOUBLER

  • Surface Mount:

    YES

  • Technology:

    GAAS
