Infineon provides a recommended PCB layout in their application note AN2341, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The CY22150FZXI has an internal overcurrent protection (OCP) feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The OCP threshold can be adjusted by selecting the appropriate resistor value. Additionally, external OCP circuits can be implemented using discrete components or dedicated OCP ICs.
The CY22150FZXI has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat dissipation to prevent overheating and ensure reliable operation.
Yes, the CY22150FZXI is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is designed to operate in harsh environments. However, it's essential to follow Infineon's guidelines for qualification, testing, and validation to ensure the device meets the specific application requirements.
Infineon provides a troubleshooting guide in their application note AN2341, which covers common issues and their solutions. Additionally, engineers can use simulation tools, such as SPICE models, to analyze and debug their designs. It's also recommended to consult with Infineon's technical support team for specific guidance and support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY22150FZXI Overview

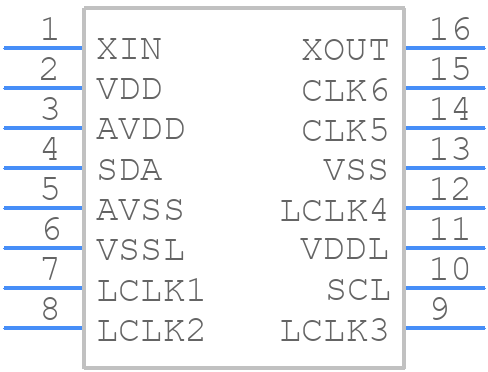

Use the download button to access the CY22150FZXI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY221,
or try a keyword search, such as Clock Generators
