Infineon provides a recommended PCB layout in their application note AN2151, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
Infineon recommends using a low-ESR capacitor (e.g., 10uF, 100nF) for power supply decoupling, and placing it as close as possible to the device. Additionally, ensure the power supply voltage is within the recommended range (3.3V ± 10%) and use a stable, low-noise power source.
The CY22150KFZXC is rated for operation from -40°C to +125°C (junction temperature), but the recommended operating temperature range is -40°C to +105°C for optimal performance and reliability.
Infineon provides a troubleshooting guide in their application note AN2151, which covers common issues, diagnostic techniques, and repair procedures. Additionally, engineers can use oscilloscopes, logic analyzers, and other debugging tools to identify and resolve issues.
Yes, the CY22150KFZXC is a high-frequency device and requires careful attention to EMI/EMC design considerations, such as using shielded cables, minimizing loop areas, and following Infineon's recommended PCB layout and component placement guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY22150KFZXC Overview

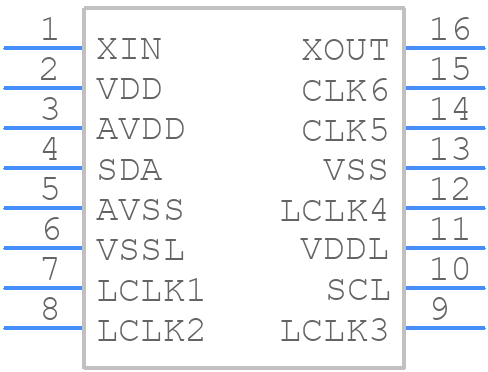

Use the download button to access the CY22150KFZXC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY221,
or try a keyword search, such as Clock Generators
