CY2292FXI - Infineon

Description: Cypress Semiconductor CY2292FXI, 3 PLL Clock Synthesizer, 16-Pin SOIC

Download CY2292FXI Model

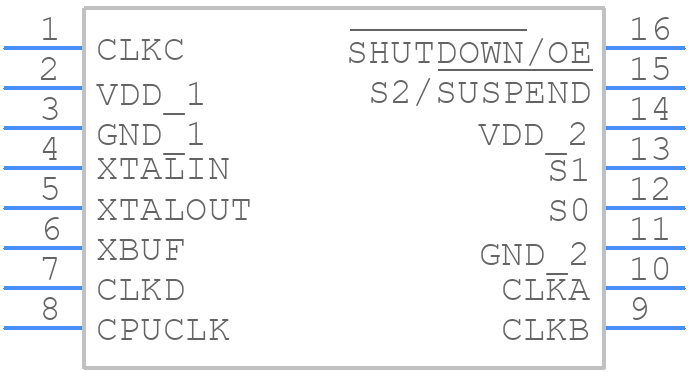

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY2292FXI - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 16-pin SOIC (150 Mils)
click to zoom
3D Models
CY2292FXI - Infineon  - 3D model - Small Outline Packages - 16-pin SOIC (150 Mils)
click to zoom

CY2292FXI Details

  • Manufacturer Part Number:

    CY2292FXI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES AT 3.3V SUPPLY

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.893 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    80 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    30 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.727 mm

  • Supply Current-Max:

    110 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.8985 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

CY2292FXI Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and coupling.
  • Use a low-ESR capacitor (e.g., 10uF) close to the VCC pin and a 1uF capacitor near the VIN pin. Add a 10nF capacitor between VCC and GND for additional decoupling.
  • The maximum allowed voltage on the input pins is 5.5V. Exceeding this voltage may damage the device.
  • Use an external current sense resistor (e.g., 0.1 ohm) and a comparator or a dedicated overcurrent protection IC to detect and respond to overcurrent conditions.
  • The recommended operating temperature range is -40°C to 85°C. Operating outside this range may affect the device's performance and reliability.
