Infineon provides a recommended PCB layout in their application note AN215, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
According to Infineon's recommendations, the CY23EP05SXI-1H should be powered with a stable voltage supply, and decoupling capacitors should be placed as close as possible to the device's power pins to filter out noise and ensure stable operation.
The CY23EP05SXI-1H is rated for operation from -40°C to +125°C, but it's essential to consider the derating curves and thermal management guidelines provided in the datasheet to ensure reliable operation within the specified temperature range.
Infineon provides a troubleshooting guide in their application note AN217, which covers common issues, debugging techniques, and repair procedures for the CY23EP05SXI-1H. Additionally, engineers can consult the device's errata sheet and contact Infineon's technical support for further assistance.
Yes, the CY23EP05SXI-1H is a sensitive electronic component and requires proper handling and storage to prevent damage. Infineon recommends following standard electrostatic discharge (ESD) precautions, storing the devices in their original packaging, and avoiding exposure to moisture, extreme temperatures, and physical stress.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY23EP05SXI-1H Overview

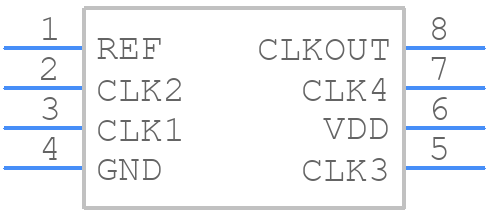

Use the download button to access the CY23EP05SXI-1H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY23E,
or try a keyword search, such as Clock Drivers
