Infineon provides a recommended PCB layout for the CY27410FLTXI in their application note AN2013-03. It suggests using a 2-layer or 4-layer PCB with a solid ground plane, and placing thermal vias under the device to improve heat dissipation.
To ensure reliable operation in high-temperature environments, it's essential to follow Infineon's guidelines for thermal management. This includes using a heat sink, ensuring good airflow, and avoiding thermal hotspots. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C).
Infineon recommends following the JEDEC J-STD-020D.1 standard for soldering conditions. The recommended peak temperature is 260°C, with a maximum time above 217°C of 30 seconds. It's also essential to use a soldering iron with a temperature control and to avoid overheating the device.
To troubleshoot issues with the internal oscillator, check the oscillator circuitry for any damage or contamination. Ensure that the oscillator pins are not loaded with external components, and that the power supply is stable and within the specified range. If issues persist, consult Infineon's application notes and technical support resources.
The CY27410FLTXI has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe equipment, wrist straps, and mats, and avoiding direct contact with the device's pins.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY27410FLTXI Overview

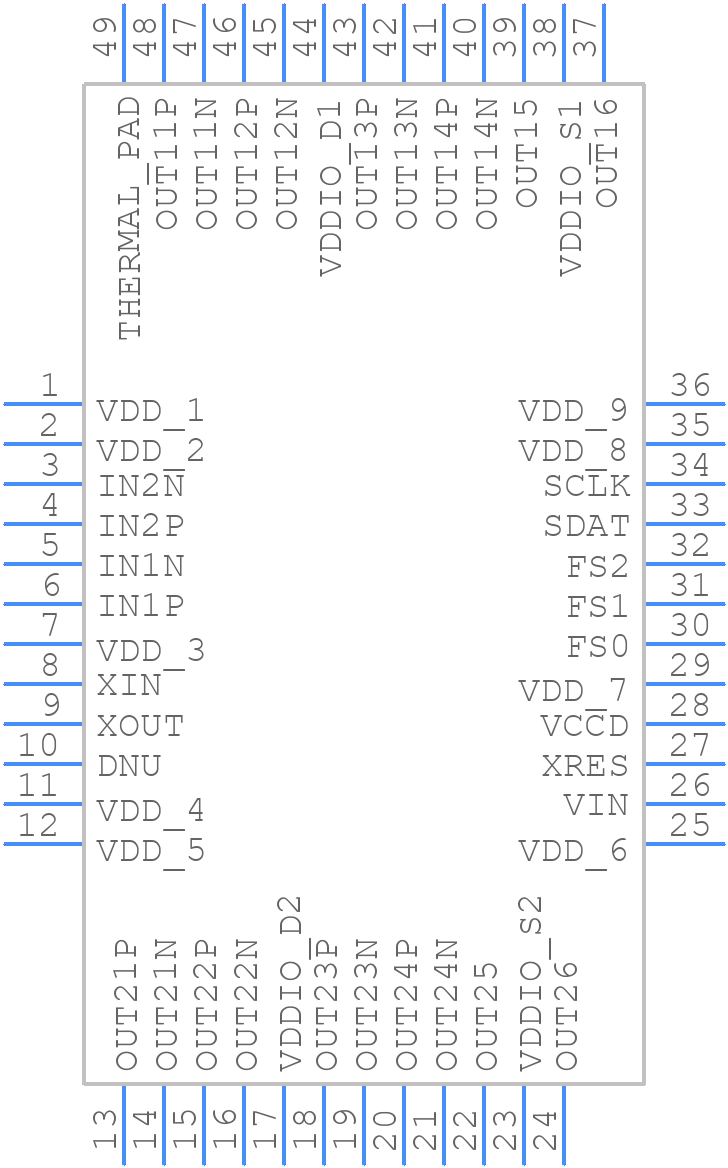

Use the download button to access the CY27410FLTXI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY274,
or try a keyword search, such as Clock Generators
