CY3-223+ - Mini-Circuits

Description: 3X SMT Multiplier, Output Freq 10000 - 22000 MHz, 50Ω

Download CY3-223+ Model

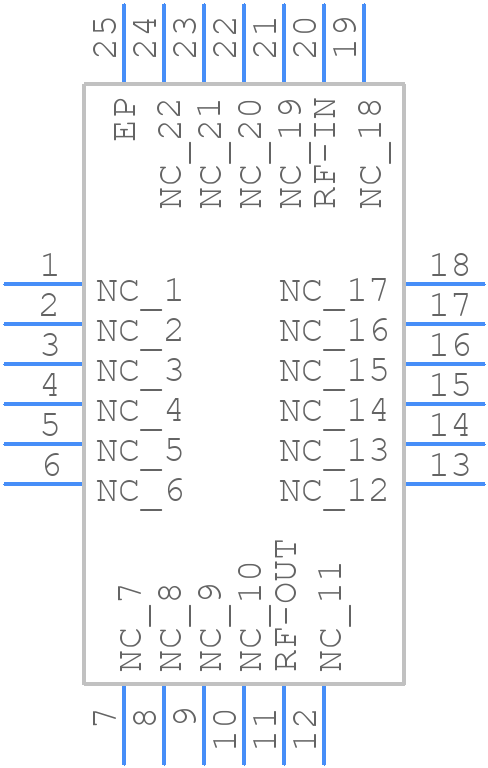

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY3-223+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DG1847_2023
click to zoom
3D Models
CY3-223+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - DG1847_2023
click to zoom

CY3-223+ Details

  • Manufacturer Part Number:

    CY3-223+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Mini-Circuits

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    27.5 dB

  • Input Power-Max (CW):

    19 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    7330 MHz

  • Operating Frequency-Min:

    3330 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • RF/Microwave Device Type:

    FREQUENCY TRIPLER

  • Screening Level:

    MIL-STD-202; MIL-STD-883; 5G

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    TIN
