Infineon provides a recommended PCB layout in their application note AN201908-01, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The CY62128ELL-55SXE requires a specific power-up and power-down sequencing to prevent latch-up and ensure proper operation. Infineon recommends following the power-up and power-down sequence outlined in their application note AN201908-01.
The CY62128ELL-55SXE has a high power density, and proper thermal management is crucial to prevent overheating. Infineon recommends using a heat sink, thermal interface material, and ensuring good airflow around the device to keep the junction temperature below 125°C.
A reliable reset circuit is essential to ensure proper device operation. Infineon recommends using a reset circuit with a capacitor and a resistor to filter out noise and ensure a clean reset signal. A detailed example is provided in their application note AN201908-01.
The CY62128ELL-55SXE has built-in ESD protection, but additional protection measures may be necessary depending on the application. Infineon recommends following the ESD protection guidelines outlined in their application note AN201908-01, including the use of ESD protection diodes and resistors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY62128ELL-55SXE Overview

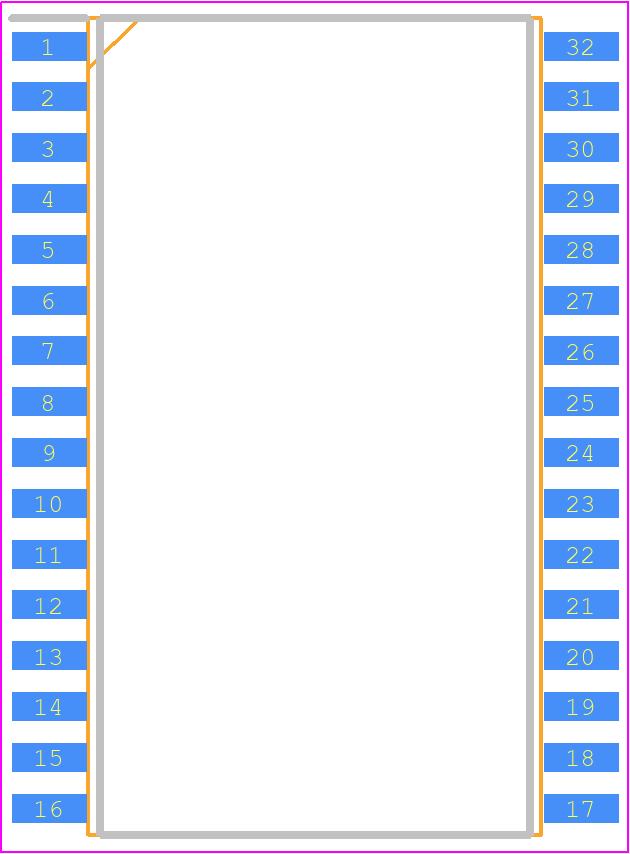

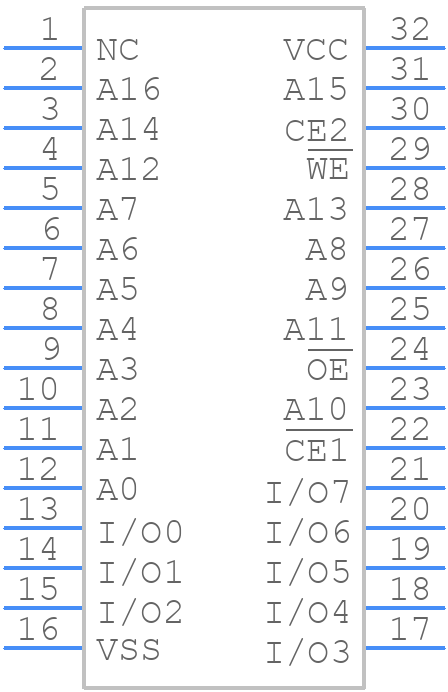

Use the download button to access the CY62128ELL-55SXE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY621,
or try a keyword search, such as SRAMs
